34840-4410

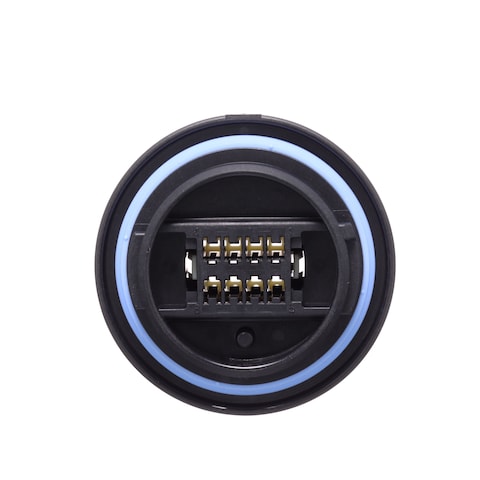

Name: Molex 34840-4410
Brand: Molex
SKU: 538-34840-4410
Price: 6.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34840-4410

Mfr. No:

34840-4410

Mfr.:

Molex

Description:

Automotive Connectors MX150 BULKHEAD TWISTLOCK 8CKT KEY A

Datasheet:

34840-4410 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 34840-4410

In Stock: 120

Stock:: 120 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,51 €	6,51 €
	5,52 €	55,20 €
	5,19 €	129,75 €
	4,95 €	247,50 €
	4,70 €	470,00 €
	4,32 €	1.296,00 €
	4,14 €	2.484,00 €
	3,88 €	4.656,00 €
	3,78 €	10.206,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	8 Position
Pitch:	3.5 mm (0.138 in)
Gender:	Plug (Male)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Contact Plating:	Tin
Color:	Black, Natural
Series:	34840
Application:	Power, Wire-to-Board
Brand:	Molex
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Description/Function:	MX150 Male Connector Assembly, Keying Option A
Features:	Bulkhead Twist-Lock, Mat-Sealed Compatible
Housing Material:	Modified Polystyrene Alloy
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	300
Subcategory:	Automotive Connectors
Tradename:	MX150
Part # Aliases:	348404410 0348404410
Unit Weight:	18,170 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8547200000
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

MX150 Connector Family

Molex MX150 Connector Family includes sealed and unsealed connector systems with a USCAR interface. These systems feature superior operating temperatures and a current rating of up to 22A. Molex MX150 Connector Family is ideal for automotive and commercial vehicle environments, including marine equipment, recreational vehicles, and industrial vehicles and equipment.

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.

MX150 Automotive Connectors

Molex MX150 Automotive Connector family features sealed and unsealed connectors developed with the automotive/transportation market in mind. These pre-assembled, fully submersible, and high-performance connectors offer a reduced package size and are available in SAE- and ISO-style wire in single- and dual-row configurations for low-level signal and power applications up to 22A. The connectors are well-suited for exterior and under-the-hood applications. Molex MX150L Industrial Sealed Connector System supports both low-level signal applications as well as power applications up to 40A, from marine to off-road construction equipment applications. The MX150 unsealed connectors are compact, high-performance connectors for direct or in-line mid-power harness applications (22AWG to 14AWG wire).

Powertrain Solutions

Molex Powertrain Solutions strike the balance between space, weight, and power, optimizing the Original Equipment Manufacturer (OEM) design. Building a better powertrain starts with electronic technologies and components that work flawlessly. Molex Powertrain Solutions are ideal for throttle control, engine controllers, and transmission controller applications.

Vertical Farming

Molex Technology in LED lighting is spurring innovative approaches to farming, allowing crops to be grown without direct sunlight in self-contained, environment-controlled, and monitored buildings, also known as vertical farming. Horticulture-specific wavelength LEDs provide the necessary light but are dependent on the most innovative and reliable interconnect products. Molex is a recognized leader in providing sealed and unsealed interconnect solutions, wire and cable assemblies, and thermal management expertise for a range of lighting segments and offers vertical farmers the needed simplicity, flexibility, and innovation.

MX150 Sealed Connector System

Molex MX150 Sealed Connector System features pre-assembled, fully-submersible MX150 high-performance connectors with a compact package. Molex MX150 Sealed Connectors are ideal for SAE- and ISO-style wire in single- and dual-row configurations up to 22A supporting both signal and power applications for on-engine automotive to off-road construction equipment applications. The Molex MX150 Sealed Connector System with a USCAR interface has a current rating up to 22.0A for power and signal automotive and commercial vehicle applications.
