34695-0102

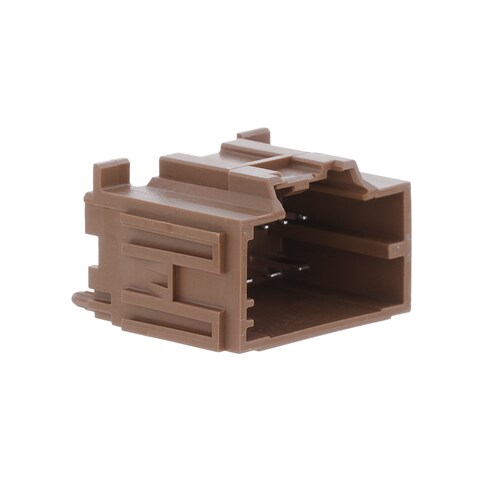

Name: Molex 34695-0102
Brand: Molex
SKU: 538-34695-0102
Price: 1.96 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34695-0102

Mfr. No:

34695-0102

Mfr.:

Molex

Description:

Automotive Connectors STAC64 SNGL BAY VHDR 10CKT BRN POL C

Datasheet:

34695-0102 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 34695-0102

In Stock: 906

Stock:: 906 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 906 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,96 €	1,96 €
	1,85 €	18,50 €
	1,78 €	44,50 €
	1,70 €	190,40 €
	1,57 €	401,92 €
	1,55 €	793,60 €
	1,51 €	1.522,08 €
	1,47 €	7.361,76 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Headers
Number of Positions:	10 Position
Pitch:	3.5 mm, 5.25 mm
Gender:	Plug (Male)
Mounting Style:	Mounting Peg
Termination Style:	Solder
Contact Plating:	Tin
Color:	Brown
Series:	34695
Packaging:	Tray
Brand:	Molex
Contact Gender:	Pin (Male)
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	10 A
Flammability Rating:	UL 94 V-0
Housing Material:	Thermoplastic (TP)
Maximum Operating Temperature:	+ 100 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	16
Subcategory:	Automotive Connectors
Tradename:	Stac64
Type:	Shrouded
Voltage Rating:	500 V
Part # Aliases:	346950102 0346950102
Unit Weight:	8,552 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

34695-0102 Datasheet

Application Notes

Application Specification (PDF)

Models

PCN

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Stac64 Automotive Connection System

Molex Stac64 Automotive Connection System now includes 14 circuit hybrid headers and receptacles. Molex Stac64 Automotive Connection System is a 2.54mm (.100") Pitch, stackable connection system offering a diverse range of circuit sizes. Requiring no custom tooling, the Stac64 system allows OEM and device manufacturers greater design flexibility to support both low-level signal requirements as well as power applications upwards of 30A. Molex STAC64 Automotive Connection System also allows automotive manufacturers to use header assemblies as stand-alone components, to gang multiple headers together to support a large range of signal and power needs for devices and modules.
