215759-1006

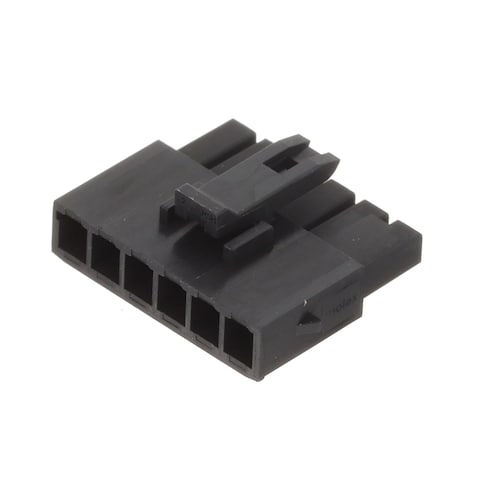

Name: Molex 215759-1006
Brand: Molex
SKU: 538-215759-1006
Price: 0.57 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-215759-1006

Mfr. No:

215759-1006

Mfr.:

Molex

Description:

Headers & Wire Housings Micro-Fit+ RecepHousing 6Circuits Black

Datasheet:

215759-1006 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 215759-1006

In Stock: 1.305

Stock:: 1.305 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,576 €	0,58 €
	0,492 €	4,92 €
	0,439 €	10,98 €
	0,415 €	41,50 €
	0,373 €	93,25 €
	0,333 €	333,00 €
	0,322 €	805,00 €
	0,313 €	1.565,00 €
	0,28 €	2.800,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	6 Position
Pitch:	3 mm (0.118 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Series:	215759
Tradename:	Micro-Fit+
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Receptacle
Housing Material:	Polyamide (PA)
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Part # Aliases:	2157591006 02157591006

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Micro-Fit+ Connectors

Molex Micro-Fit+ Connectors offer superior design options for flexibility and efficient assembly. The connectors offer a high current rating of up to 13.5A with a 3mm pitch and use the same amount of space that smaller connectors occupy. Features include a smaller PCB footprint, a reduced mating force of 40%, and an enhanced TPA design that provides stability and security for the terminals inside the receptacle. Molex Micro-Fit+ applications include consumer, telecommunication/networking, medical, sustainable energy, and automotive.
