213814-1105

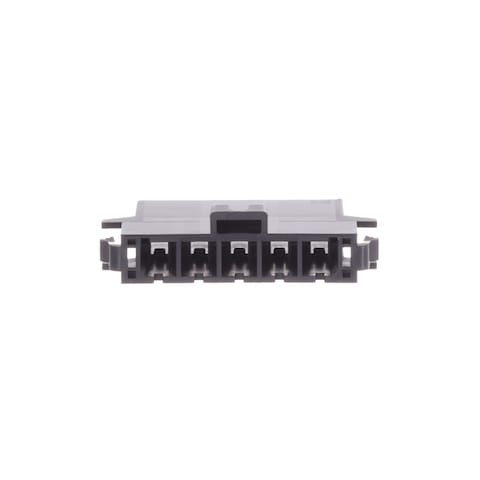

Name: Molex 213814-1105
Brand: Molex
SKU: 538-213814-1105
Price: 0.99 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-213814-1105

Mfr. No:

213814-1105

Mfr.:

Molex

Description:

Headers & Wire Housings MEGA-FIT SR PANEL MNT PLUG HSG 1X5CKT

Datasheet:

213814-1105 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 213814-1105

In Stock: 1.317

Stock:: 1.317 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 23 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,998 €	1,00 €
	0,877 €	8,77 €
	0,854 €	21,35 €
	0,819 €	81,90 €
	0,817 €	204,25 €
	0,735 €	367,50 €
	0,659 €	659,00 €
	0,594 €	1.485,00 €
	0,576 €	2.880,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	5 Position
Pitch:	5.7 mm (0.224 in)
Number of Rows:	1 Row
Mounting Style:	Panel Mount
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	213814
Tradename:	Mega-Fit
Application:	Wire-to-Wire, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 120 C
Packaging:	Bulk
Brand:	Molex
Contact Material:	Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	26 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Plug
Housing Material:	Nylon
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Part # Aliases:	2138141105 02138141105

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Mega-Fit Power Connectors

Molex Mega-Fit Power Connectors deliver up to 23A per circuit set on a 5.7mm pitch. This innovative design allows design engineers more power density than existing mid-range power connectors. Mega-Fit connectors are designed for wire-to-board configurations and can be used in virtually any industry or application. The system provides fully isolated terminals, positive lock housings, and polarized receptacles and housings. This split-box terminal design provides six independent points of contact to offer long-term reliability. Molex Mega-Fit products are UL recognized and CSA approved. All components are lead-free and RoHS compliant.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
