205926-0010

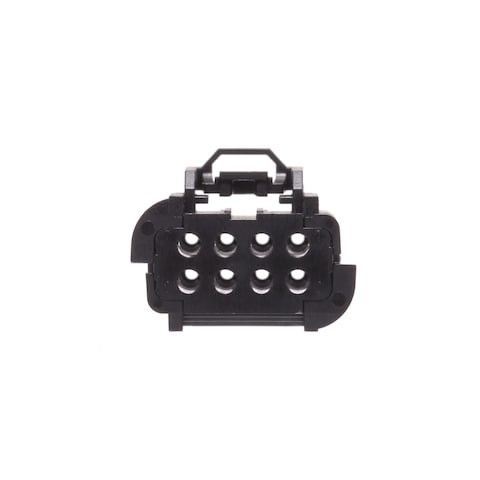

Name: Molex 205926-0010
Brand: Molex
SKU: 538-205926-0010
Price: 1.92 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-205926-0010

Mfr. No:

205926-0010

Mfr.:

Molex

Description:

Heavy Duty Power Connectors MCAT MPWR REC HSG 8CKT KY A W/O CPA BK

Datasheet:

205926-0010 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 205926-0010

In Stock: 1.368

Stock:: 1.368 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 1368 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,92 €	1,92 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	205926
Product:	Housings
Number of Positions:	8 Position
Termination Style:	Crimp
Housing Material:	Polyetherimide (PEI)
Packaging:	Bulk
Tradename:	MultiCat
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Maximum Operating Temperature:	+ 150 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Mounting Style:	Free Hanging
Number of Rows:	2 Row
Pitch:	3.6 mm
Product Type:	Heavy Duty Power Connectors
Row Spacing:	3.6 mm
Factory Pack Quantity:	1
Subcategory:	Power Connectors
Part # Aliases:	2059260010 0259260010 259260010-FCT
Unit Weight:	4,823 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8547200090
CNHTS:: 8538900000
USHTS:: 8538906000
ECCN:: EAR99

MultiCat Mid-Power Connectors

Molex MultiCat Mid-Power Connector System with Precision-Machined Contacts provides 6.5A per contact with a contact resistance of ≤1mΩ for the high-power version and 10mΩ for the mid-power version. These contacts accommodate 20AWG to 28AWG wire and withstand at least 500 mating cycles. Molex MultiCat Mid-Power Connectors have a two-piece hermaphroditic backshell, connector position assurance (CPA) with visual indicator, and a solid mass contact to resist damage in blind-mate applications. These connectors can be mated quickly and are ideal for commercial aviation, industrial automation, commercial vehicles, and telecommunications.
