205338-0002

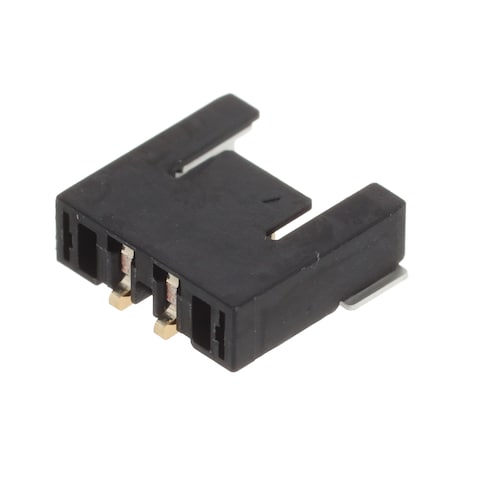

Name: Molex 205338-0002
Brand: Molex
SKU: 538-205338-0002
Price: 1.29 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-205338-0002

Mfr. No:

205338-0002

Mfr.:

Molex

Description:

Headers & Wire Housings 2mm Pico-Lock Hdr SR RA SrfMt PosLck 2Ckt

Datasheet:

205338-0002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 205338-0002

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 10.773

Expected 3/27/2026

10.800

TBD
Factory Lead Time:: 25

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1800)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,29 €	1,29 €
	1,10 €	11,00 €
	0,937 €	93,70 €
	0,843 €	421,50 €
	0,834 €	834,00 €
Full Reel (Order in multiples of 1800)
	0,814 €	1.465,20 €
	0,754 €	2.714,40 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	2 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	205338
Tradename:	Pico-Lock
Application:	Wire-to-Board, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Molex
Contact Material:	Copper Alloy
Current Rating:	6.5 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polyamide (PA)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1800
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC/DC
Part # Aliases:	2053380002 02053380002
Unit Weight:	198,280 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

205338-0002 Datasheet

Application Notes

Application Specification (PDF)

Models

PCN

Specification Sheets

Product Specification (PDF)

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Pico-Lock Connectors

Molex Pico-Lock SMT Wire-to-Board Connectors offer a unique side positive-lock design and high current handling capacity for consumer applications. Available in 1mm, 1.5mm, 2mm, and 3mm pitch versions, the Pico-Lock wire-to-board system offers an ideal combination of low profile, high current, and durable locking for any application requiring space savings and secure mating retention. The side positive locks provide a high signal-line current capability of 10A. This design allows the Molex Pico-Lock connectors to achieve ultra-low profile, robust connections in applications such as LCD TVs, smart meters, and servers. A guide rib on the housing provides polarization and mating guidance for secure connections. Other features include friction locks for additional mating assurance and visual mating confirmation, as well as a wide solder tab that wraps up into the header and around the housing for additional PCB retention and mechanical system assurance.
