201644-2360

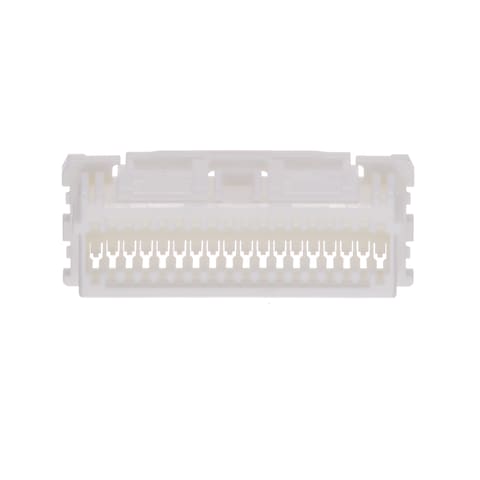

Name: Molex 201644-2360
Brand: Molex
SKU: 538-201644-2360
Price: 0.46 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-201644-2360

Mfr. No:

201644-2360

Mfr.:

Molex

Description:

Headers & Wire Housings Spot-On 1.5 DR RECEP HSG 36CKT NATL

Datasheet:

201644-2360 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 201644-2360

In Stock: 1.695

Stock:: 1.695 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 27 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,464 €	0,46 €
	0,398 €	3,98 €
	0,353 €	8,83 €
	0,323 €	32,30 €
	0,253 €	75,90 €
	0,212 €	212,00 €
	0,185 €	462,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	36 Position
Pitch:	1.5 mm (0.059 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	201644
Tradename:	Spot-On
Application:	Wire-to-Board, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Housing Gender:	Female
Housing Material:	Polyamide (PA)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	100
Subcategory:	Headers & Wire Housings
Part # Aliases:	02016442360
Unit Weight:	1,561 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8547200090
CNHTS:: 8538900000
USHTS:: 8538906000
ECCN:: EAR99

Origin Classifications

Country of Origin:: Japan
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Spot-On 1.5mm & 2.0mm Connector System

Molex Spot-On 1.5mm and 2.0mm Connector System is an SMT-type potting wire-to-board connector system. The high process capabilities and mechanical reliability provide protection against water ingress in white goods applications requiring potting treatment. Molex Spot-On 1.5mm and 2.0mm Connectors' durable design features numerous advantages, including fully polarized and color-coded receptacle housing that ensures fool-proof mating of the wired assembly, decreasing the possibility of mismatching wires.
