200453-1002

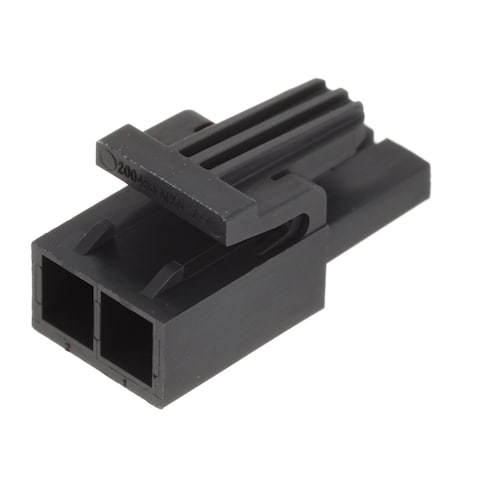

Name: Molex 200453-1002
Brand: Molex
SKU: 538-200453-1002
Price: 0.4 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-200453-1002

Mfr. No:

200453-1002

Mfr.:

Molex

Description:

Headers & Wire Housings MINI-FIT SIGMA SR REC HSG 1X2CKT

Datasheet:

200453-1002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 200453-1002

In Stock: 3.135

Stock:: 3.135 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,404 €	0,40 €
	0,344 €	3,44 €
	0,307 €	7,68 €
	0,292 €	29,20 €
	0,261 €	65,25 €
	0,235 €	235,00 €
	0,224 €	492,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	2 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	200453
Tradename:	Mini-Fit Sigma
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Molex
Contact Type:	Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Nylon
Latching Type:	Friction Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2200
Subcategory:	Headers & Wire Housings
Part # Aliases:	2004531002 02004531002
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

200453-1002 Datasheet

Models

STP File (Zip)

PCN

Specification Sheets

2004531002_sd (PDF)

RoHS Certificate (PDF)

TARIC:: 8547200000
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9.0A and 13.0A respectively. Blind-mating and terminal position assurance options offer a versatile connector system for a wide range of applications.

Mini-Fit Sigma Connectors & Pre-Crimped Leads

Molex Mini-Fit Sigma Connectors and Pre-Crimped Leads feature terminal position assurance (TPA) with a secondary locking feature to reduce assembly error. Connector terminals are fully sealed to prevent end-product failure. The Molex Mini-Fit Sigma components provide up to a maximum current of 11.5A and 600V_AC/DC maximum voltage. Pre-crimped leads offer female-to-female and female-to-pigtail configurations in 75mm to 450mm lengths, which are ideal for wire-to-wire use. Molex Mini-Fit Sigma applications include automotive, commercial vehicle, consumer, data/communications, home appliance, industrial automation, medical and telecommunications/networking.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
