171982-1142

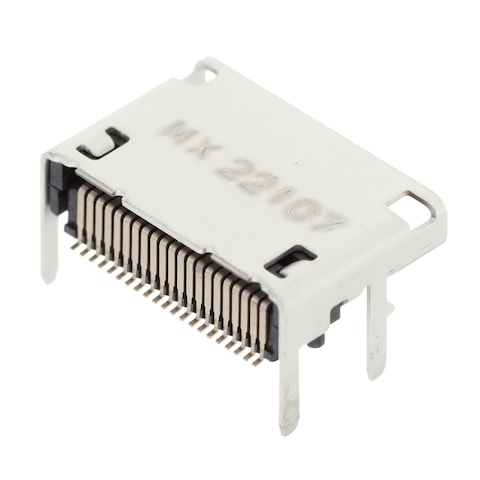

Name: Molex 171982-1142
Brand: Molex
SKU: 538-171982-1142
Price: 7.42 EUR
Availability: LimitedAvailability

Images are for reference only
See Product Specifications

Mouser No:

538-171982-1142

Mfr. No:

171982-1142

Mfr.:

Molex

Description:

I/O Connectors NanoPtich RA Recp TH Shell 42Ckt No Cap

Lifecycle:

Restricted Availability:

This part number is not currently available from Mouser. Product may be in limited distribution or a factory special order.

Datasheet:

171982-1142 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 128

Stock:: 128 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 128 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 450)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	7,42 €	7,42 €
	6,31 €	63,10 €
	5,37 €	537,00 €
	5,14 €	1.285,00 €
Full Reel (Order in multiples of 450)
	5,13 €	2.308,50 €
	4,93 €	4.437,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	I/O Connectors
RoHS:
Product:	I/O Connectors
Gender:	Female
Number of Positions:	42 Position
Pitch:	0.5 mm
Voltage Rating:	30 V
Contact Plating:	Gold
Mounting Style:	Mounting Peg
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Series:	171982
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 80 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Molex
Color:	Black
Current Rating:	500 mA
Housing Material:	Thermoplastic (TP)
Number of Ports:	1 Port
Product Type:	I/O Connectors
Factory Pack Quantity:	450
Subcategory:	I/O Connectors
Tradename:	Nano-Pitch
Part # Aliases:	1719821142 01719821142
Unit Weight:	1,042 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Augmented Reality

Augmented Reality (AR) can go beyond video games and offer advantages to various industries. AR improves both safety and efficiency and allows engineers freedom from physical constraints, and Molex solutions keep electronic designs secure and electrical connections reliable. Discover new realities in augmented reality and examine the key products empowering companies to develop AR products and technologies that are enhancing human capabilities in manufacturing applications.

Nano-Pitch I/O™ Interconnect System

Molex Nano-Pitch I/O™ Interconnect System features industry-leading port density, multi-protocol application support, and high bandwidth performance for PCIe and SAS solutions within the storage industry, as well as in broader markets. The Molex Nano-Pitch I/O Interconnect System allows for data to move at 24Gbps per lane and is compatible with all known PCIe, SAS, and SATA protocols. The system is future-proofed for PCIe Gen 4 (16 GT/s) and SAS 4 (24Gbps) to offer space and performance issues in download systems well into the future.
