170729-0002

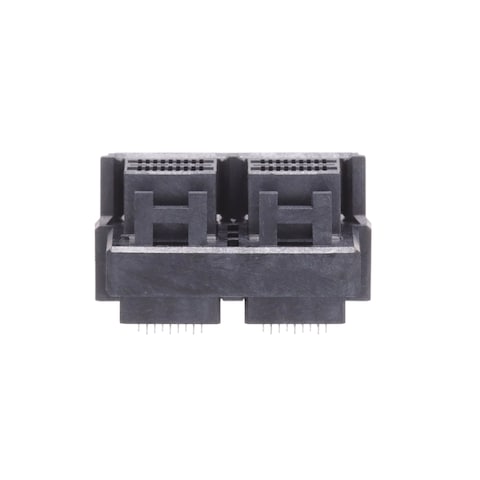

Name: Molex 170729-0002
Brand: Molex
SKU: 538-170729-0002
Price: 22.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-170729-0002

Mfr. No:

170729-0002

Mfr.:

Molex

Description:

High Speed/Modular Connectors iPass zHD Vert 1x2 Internal Assy

Datasheet:

170729-0002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 170729-0002

In Stock: 14

Stock:: 14 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	22,51 €	22,51 €
	19,14 €	191,40 €
	17,89 €	447,25 €
	16,84 €	842,00 €
	16,33 €	1.633,00 €
	16,31 €	4.305,84 €
	15,85 €	8.368,80 €
1.056	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	High Speed/Modular Connectors
RoHS:
Product:	Receptacles
Number of Positions:	72 Position
Number of Rows:	4 Row
Pitch:	0.75 mm
Termination Style:	Press Fit
Contact Plating:	Gold
Series:	170729
Packaging:	Bulk
Brand:	Molex
Contact Material:	Tin
Current Rating:	1 A
Housing Material:	Thermoplastic (TP)
Maximum Operating Temperature:	+ 80 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Vertical
Product Type:	High Speed / Modular Connectors
Factory Pack Quantity:	132
Subcategory:	Backplane Connectors
Tradename:	iPass+
Voltage Rating:	48 VAC/DC
Unit Weight:	6 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

170729-0002 Datasheet

Models

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

iPass+ zHD Vertical Connectors

Molex iPass+ zHD Vertical Connectors operate at SAS-3 and Projected SAS-4 high-speed bandwidths. These low-profile Molex connectors drive next generation data rates and port densities, improving system airflow and signal integrity by eliminating mid-plane connections. Molex iPass+ zHD Connectors are 0.75mm pitch vertical connectors feature a robust and secure connection and are scalable up to 96Gbps data rates (24Gbps over four lanes).

High-Speed Solutions

Molex High-Speed Solutions meet the most stringent high-speed performance requirements. The broad connector portfolio supports a wide range of data rates in multiple sizes and shapes. High-speed interconnect solutions provide the flexibility and scalability required to meet the demands of next-generation systems.
