03-09-1171

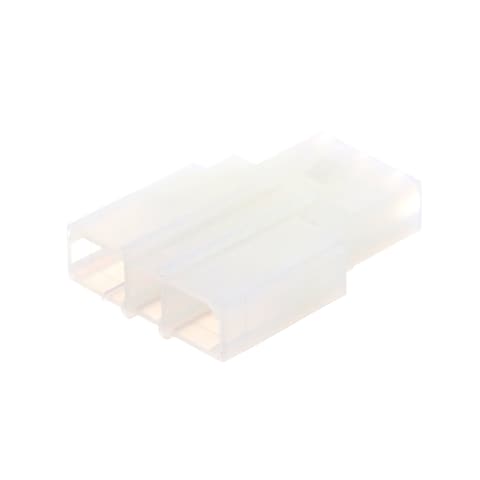

Name: Molex 03-09-1171
Brand: Molex
SKU: 538-03-09-1171
Price: 0.24 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-03-09-1171

Mfr. No:

03-09-1171

Mfr.:

Molex

Description:

Pin & Socket Connectors 093 Housing Recept +Lock 3Ckt

Datasheet:

03-09-1171 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 03-09-1171

In Stock: 2.047

Stock:: 2.047 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 2047 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,249 €	0,25 €
	0,219 €	2,19 €
	0,20 €	5,00 €
	0,189 €	18,90 €
	0,162 €	162,00 €
	0,138 €	372,60 €
	0,133 €	718,20 €
	0,129 €	1.393,20 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Pin & Socket Connectors
RoHS:
Product:	Plug Housings
Number of Positions:	3 Position
Number of Rows:	1 Row
Pitch:	6.3 mm
Housing Material:	Nylon
Series:	42191
Tradename:	Standard .093 in
Brand:	Molex
Contact Type:	Pin, Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-2
Housing Gender:	Receptacle
Product Type:	Pin & Socket Connectors
Factory Pack Quantity:	1
Subcategory:	Pin & Socket Connectors
Part # Aliases:	3091171

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

03-09-1171 Datasheet (PDF)

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690030
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Standard 0.093" Pin & Socket Connectors

Molex Standard 0.093" Pin and Socket Connectors provide a flexible design solution for medium-power applications. These Molex power connectors are an industry-standard connector system based on a 0.093" pin diameter. The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14A (9A with the largest circuit size housings, 17A with high-current/low-force terminals). The system is available in wire-to-wire and wire-to-board configurations for up to 15 circuits. Molex Standard 0.093" Pin and Socket Connectors are ideal for consumer, networking, and data/communications applications.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.

Industrial Automation

Molex Industrial Automation connectors provide a convenient source for meeting passive interconnect and industrial communications requirements for industrial applications. Molex Industrial Automation simplifies design, installation, and maintenance processes.

Industrial Power

Molex Industrial Power products allow designers to achieve power delivery and power distribution with a vast array of power connectors. These Molex connectors include pin and socket power connectors, EXTreme LPHPower and EXTreme Guard System devices, and CRC robotic connectors, as well as HMC and mini-HMC rectangular connectors.
