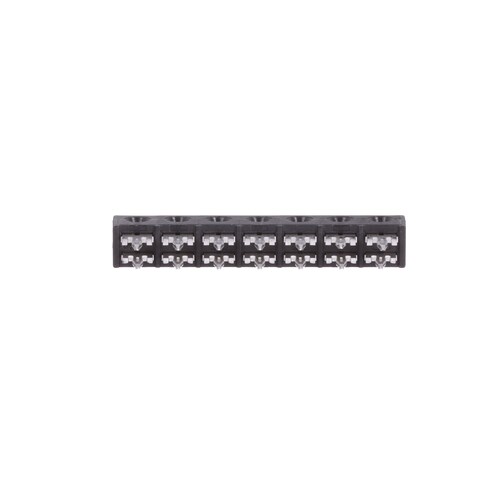

Name: KYOCERA AVX 538702207020096
Brand: KYOCERA AVX
SKU: 581-538702207020096
Price: 2.67 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

581-538702207020096

Mfr. No:

538702207020096

Mfr.:

KYOCERA AVX

Description:

Headers & Wire Housings IDC/Press-Fit 9A 125 V 20AWG 7Way 2Row

Datasheet:

538702207020096 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about KYOCERA AVX 538702207020096

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1700 Multiples: 1700

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,67 €	4.539,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	KYOCERA AVX
Product Category:	Headers & Wire Housings
RoHS:	N
Product:	Headers
Type:	Wire to Board
Number of Positions:	7 Position
Pitch:	4.5 mm (0.177 in)
Number of Rows:	2 Row
Mounting Style:	Press Fit
Termination Style:	IDC
Mounting Angle:	Straight
Contact Plating:	Tin
Series:	53-8702
Application:	Wire-to-Board
Wire Gauge:	20 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	KYOCERA AVX
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	9 A
Housing Colour:	Black
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1700
Subcategory:	Headers & Wire Housings
Voltage Rating:	125 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

538702207020096 Datasheet (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

IDC Wire-to-Board Connectors

KYOCERA AVX IDC Wire-to-Board Connectors provide a robust, reliable, and efficient method to connect individual wires ranging from 12AWG to 30AWG directly to a PCB. The single contact design can function as a standalone component, providing designers access to IDC technology in an easy-to-use form factor that allows them to bring power and signal to a PCB in a wide range of applications. KYOCERA AVX IDC Connectors are suitable for demanding applications, including solid-state lighting (SSL) and industrial sensors and controls.
