142-0701-216

Name: Cinch Connectivity Solutions 142-0701-216
Brand: Johnson / Cinch Connectivity Solutions
SKU: 530-142-0701-216
Price: 7.25 EUR
Availability: InStock

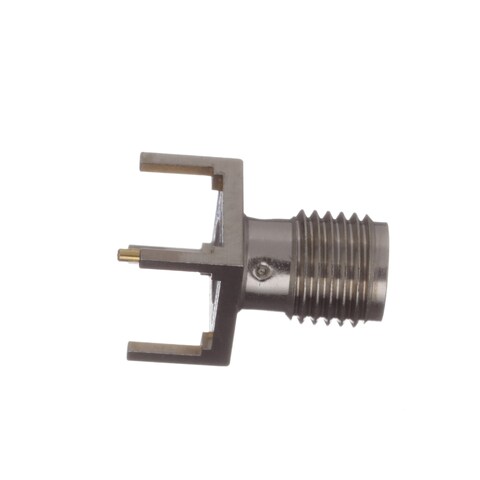

Images are for reference only
See Product Specifications

Mouser No:

530-142-0701-216

Mfr. No:

142-0701-216

Mfr.:

Johnson / Cinch Connectivity Solutions

Description:

RF Connectors / Coaxial Connectors PC JACK NICKEL

Datasheet:

142-0701-216 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Johnson / Cinch Connectivity Solutions 142-0701-216

In Stock: 100

Stock:: 100 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,25 €	7,25 €
	6,16 €	61,60 €
	5,77 €	144,25 €
	5,50 €	275,00 €
	5,23 €	523,00 €
	4,90 €	1.225,00 €
	4,56 €	2.280,00 €
	4,36 €	4.360,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Cinch Connectivity Solutions
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	SMA
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	18 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	PCB Mount
Packaging:	Bulk
Body Finish:	Nickel
Body Material:	Brass
Body Style:	Straight
Brand:	Johnson / Cinch Connectivity Solutions
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 165 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMA
Factory Pack Quantity:	25
Subcategory:	RF Interconnects
Voltage Rating:	335 V
Unit Weight:	2,741 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

142-0701-216 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Connectors for 5G Applications

Cinch Connectors for 5G Applications features a broad range of products that include connectors, adapters, and cable assemblies. The SMA, SMP, SMPM, 1mm, 1.85mm, 2.4mm, and 2.92mm series are all designed to meet 5G application needs. Each Cinch series offers specific features for RF and microwave connectivity solutions.

SMA Connectors

Johnson / Cinch Connectivity Solutions SMA Connectors offer a wide range of 50Ω and 75Ω options in multiple mounting styles. These SMA Connectors are available in a range of cable, plug, and jack types (straight, right angle, bulkhead, mini, flange) as well as hand-formable types. Johnson / Cinch Connectivity Solution SMA Connectors can meet unique specifications.
