JN2AW15PL1

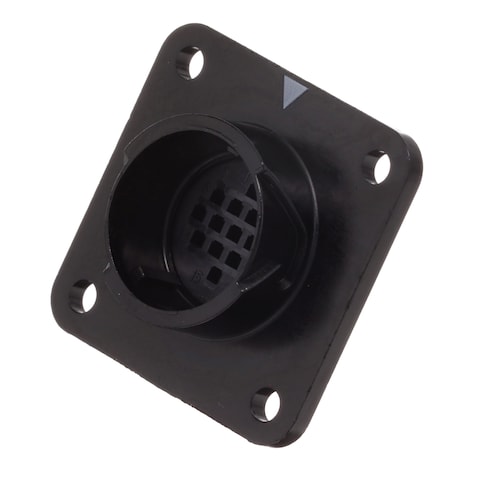

Name: JAE Electronics JN2AW15PL1
Brand: JAE Electronics
SKU: 656-JN2AW15PL1
Price: 16.85 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

656-JN2AW15PL1

Mfr. No:

JN2AW15PL1

Mfr.:

JAE Electronics

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 20

Expected 8/11/2026
Factory Lead Time:: 15

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	JAE Electronics
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	15 Position
Contact Gender:	Without Pin Contacts
Mounting Style:	Panel
Termination Style:	Crimp
Contact Plating:	Gold
Shell Material:	Zinc Alloy
IP Rating:	IP67
Series:	JN1 / JN2
Packaging:	Tray
Brand:	JAE Electronics
Color:	Black
Contact Material:	Copper Alloy
Current Rating:	3 A
Housing Gender:	Female
Mating Cycles:	500 Cycle
Mating Style:	Push-Pull
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Plating:	Zinc
Shell Style:	Receptacle
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Voltage Rating:	200 VAC
Unit Weight:	27,443 g
