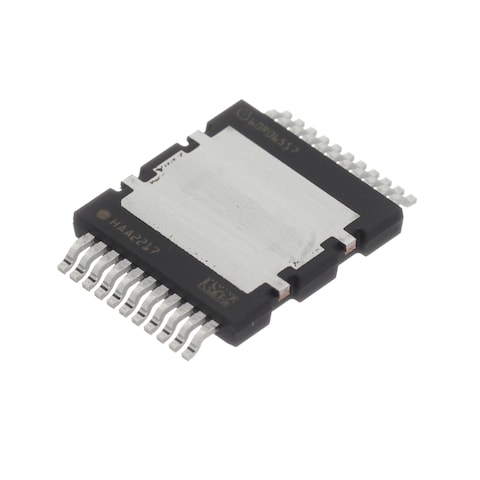

IPDQ60R065S7XTMA1

Name: Infineon IPDQ60R065S7XTMA1
Brand: Infineon Technologies
SKU: 726-PDQ60R065S7XTMA1
Price: 3.72 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

726-PDQ60R065S7XTMA1

Mfr. No:

IPDQ60R065S7XTMA1

Mfr.:

Infineon Technologies

Description:

MOSFETs HIGH POWER_NEW

Datasheet:

IPDQ60R065S7XTMA1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Infineon Technologies IPDQ60R065S7XTMA1

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 749

Expected 3/26/2026
Factory Lead Time:: 17

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 750)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	3,72 €	3,72 €
	2,60 €	26,00 €
	2,23 €	223,00 €
	2,14 €	1.070,00 €
Full Reel (Order in multiples of 750)
	2,14 €	1.605,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Infineon
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	SMD/SMT
Package/Case:	HDSOP-22
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	9 A
Rds On - Drain-Source Resistance:	65 mOhms
Vgs - Gate-Source Voltage:	- 20 V, 20 V
Vgs th - Gate-Source Threshold Voltage:	3.5 V
Qg - Gate Charge:	51 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	195 W
Channel Mode:	Enhancement
Tradename:	CoolMOS
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Infineon Technologies
Configuration:	Single
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Fall Time:	9 ns
Product Type:	MOSFETs
Rise Time:	5 ns
Series:	S7
Factory Pack Quantity:	750
Subcategory:	Transistors
Typical Turn-Off Delay Time:	100 ns
Typical Turn-On Delay Time:	15 ns
Part # Aliases:	IPDQ60R065S7 SP005559296

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPDQ60R065S7XTMA1 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8541290000
CNHTS:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
MXHTS:: 8541299900
ECCN:: EAR99

600V CoolMOS™ SJ S7/S7T Power MOSFETs

Infineon Technologies 600V CoolMOS™ SJ S7/S7T Power MOSFETs offer an ideal price performance for low-frequency switching applications. The CoolMOS S7 and S7T series features a low R_DS(on) value for an HV SJ MOSFET, with an increase in energy efficiency. Infineon CoolMOS S7 and S7T MOSFETs are optimized for static-switching and high-current applications. The MOSFETs come in a TOLL or a Q-DPAK package with top-side and bottom-side variants. The CoolMOS SJ S7 MOSFETs target applications where switching losses are irrelevant. The CoolMOS SJ S7T devices integrate a temperature sensor to improve junction temperature sensing accuracy. The devices are geared toward solid-state solutions, such as solid-state circuit breakers and solid-state relay (SSR) applications.
