M24308/23-8F

Name: ITT Cannon M24308/23-8F
Brand: ITT Cannon
SKU: 965-M24308/23-8F
Price: 23.02 EUR
Availability: InStock

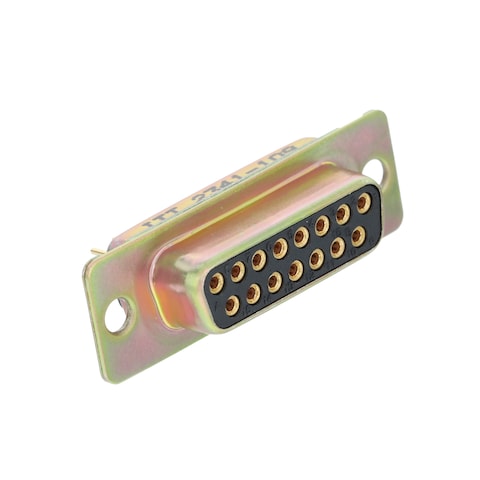

Images are for reference only
See Product Specifications

Mouser No:

965-M24308/23-8F

Mfr. No:

M24308/23-8F

Mfr.:

ITT Cannon

Description:

D-Sub Mil Spec Connectors Socket, Std Density Cadmium,3 ,25

Datasheet:

M24308/23-8F Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about ITT Cannon M24308/23-8F

In Stock: 6

Stock:: 6

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 100

Expected 8/3/2026
Factory Lead Time:: 15

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	23,02 €	23,02 €
	20,34 €	203,40 €
	19,07 €	476,75 €
	18,15 €	907,50 €
	17,29 €	1.729,00 €
	16,47 €	4.117,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	ITT Cannon
Product Category:	D-Sub Mil Spec Connectors
Product:	Connectors
Gender:	Female
Number of Positions:	15 Position
Number of Rows:	2 Row
Termination Style:	Through Hole
Mounting Angle:	Straight
Contact Plating:	Gold
Mounting Style:	Panel
Brand:	ITT Cannon
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	7.5 A
Insulation:	Insulated
Insulation Material:	Polyester (PCT)
Product Type:	D-Sub MIL Spec Connectors
Shell Material:	Aluminum
Shell Plating:	Cadmium
Factory Pack Quantity:	1
Subcategory:	MIL-Spec / MIL-Type
Type:	Standard
Part # Aliases:	130774-0063 MS

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

M24308/23-8F Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

M24308 D-Subminiature Connectors

ITT Cannon M24308 D-Subminiature Connectors are designed to offer ruggedized interconnect solutions that transfer data, signal, and power in a compact design. These connectors feature a resourceful interface for mission-critical platforms and programs. ITT Cannon M24308 D-sub Connectors can be configured for in-line termination using crimp contacts and solder cup or for straight and PCB-mounted applications. These connectors feature 1000V_AC at sea level DWV rating, standard and high-density configurations, solder and crimp cable versions, and fixed or float mount options. Typical applications include long-range subsonic cruise missiles, advanced shipboard communications, technology-driven UAVs, and next-generation commercial aircraft systems.
