PS3CS-B-1UP

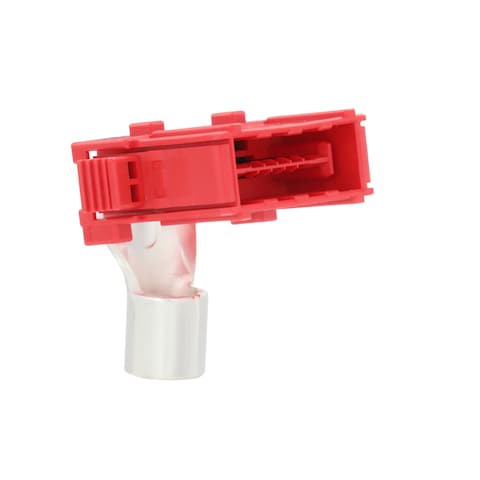

Name: Hirose Electric PS3CS-B-1UP
Brand: Hirose Connector
SKU: 798-PS3CS-B-1UP
Price: 15.63 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-PS3CS-B-1UP

Mfr. No:

PS3CS-B-1UP

Mfr.:

Hirose Connector

Description:

Heavy Duty Power Connectors

Datasheet:

PS3CS-B-1UP Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 18

Stock:: 18 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	15,63 €	15,63 €
	13,55 €	135,50 €
	11,52 €	288,00 €
	11,20 €	1.310,40 €
	10,90 €	2.975,70 €
	10,79 €	5.470,53 €
	10,59 €	10.738,26 €
2.535	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	PS3C
Product:	Plugs
Current Rating:	125 A
Number of Positions:	1 Position
Termination Style:	Screw
Voltage Rating:	1 kV
Insert/Contact Gender:	Pin (Male)
Housing Material:	Polybutylene Terephthalate (PBT)
Contact Plating:	Silver
Contact Material:	Copper Alloy
Wire Gauge Min:	2 AWG
Wire Gauge Max:	1 AWG
Packaging:	Tray
Brand:	Hirose Connector
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	39
Subcategory:	Power Connectors
Part # Aliases:	236-1077-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PS3CS-B-1UP Datasheet

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

PS3C High Current Battery Connectors

Hirose Electric PS3C High Current Battery Connectors are single position cable connectors that support 150A for storage batteries. The connectors combine ruggedness, reliability, and ease of assembly in a single-circuit storage battery connector. The PS3C components also feature a small, right-angle receptacle that maintains a low profile to the battery unit, offering significant space savings. The series offers a guide key and color-coding to prevent mismating between the ± electrode with IP2X finger protection.
