H2.4-R-SR2-S(11)

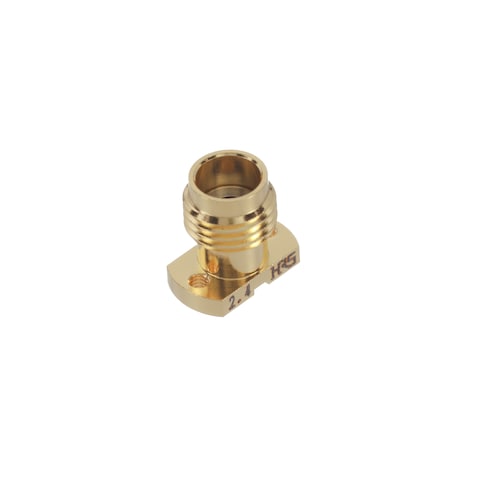

Name: Hirose Electric H2.4-R-SR2-S(11)
Brand: Hirose Connector
SKU: 798-H2.4-R-SR2-S(11)
Price: 41.11 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-H2.4-R-SR2-S(11)

Mfr. No:

H2.4-R-SR2-S(11)

Mfr.:

Hirose Connector

Description:

RF Connectors / Coaxial Connectors 2.4mm(APC-2.4,OS-50) Conn Recpt Fem Sock

Datasheet:

H2.4-R-SR2-S(11) Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector H2.4-R-SR2-S(11)

In Stock: 20

Stock:: 20 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 20 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	41,11 €	41,11 €
	33,33 €	333,30 €
	31,12 €	622,40 €
	31,07 €	1.864,20 €
	29,97 €	2.997,00 €
	28,39 €	7.381,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	Connectors
RF Series:	2.4 mm
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	50 GHz
Termination Style:	Compression
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Flange Mount
Packaging:	Bulk
Brand:	Hirose Connector
Product Type:	RF Connectors / Coaxial Connectors
Factory Pack Quantity:	20
Subcategory:	RF Interconnects
Part # Aliases:	338-0605-0-11

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

H2.4-R-SR2-S(11) Datasheet (PDF)

Compliance Codes

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Japan
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

HK & H2.4 Coaxial Connectors

Hirose Electric HK and H2.4 Series Coaxial Connectors support frequencies of 40GHz and 50GHz, respectively. The HK series features 2.92mm connectors, while the H2.4 series is slightly smaller at 2.4mm. Both types conform to the MIL-STD-348B standard. Hirose Electric HK and H2.4 Coaxial Connectors use screw mounting to provide excellent high-frequency performance and consistent assembly quality. The connectors also accommodate flexible PCBs with varying thicknesses and provide stable grounding through a gold-plated ground surface.
