DF20EF-50DP-1V(52)

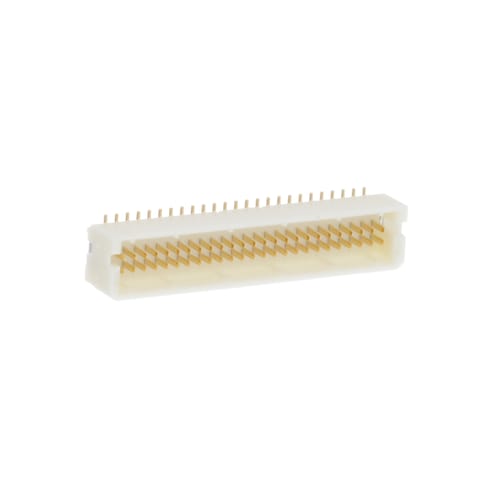

Name: Hirose Electric DF20EF-50DP-1V(52)
Brand: Hirose Connector
SKU: 798-DF20EF-50DP-1V52
Price: 2.36 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

798-DF20EF-50DP-1V52

Mfr. No:

DF20EF-50DP-1V(52)

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings

Datasheet:

DF20EF-50DP-1V(52) Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector DF20EF-50DP-1V(52)

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 1.000

Expected 6/10/2026
Factory Lead Time:: 7

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1000)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	2,36 €	2,36 €
	2,01 €	20,10 €
	1,71 €	171,00 €
	1,61 €	805,00 €
Full Reel (Order in multiples of 1000)
	1,54 €	1.540,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Wire to Board
Number of Positions:	50 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	DF20
Wire Gauge:	28 AWG
Minimum Operating Temperature:	- 35 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Hirose Connector
Contact Material:	Phosphor Bronze
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Beige
Housing Gender:	Male
Housing Material:	Polyamide
Insulation Resistance:	500 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Voltage Rating:	100 V
Part # Aliases:	686-0053-0-52
