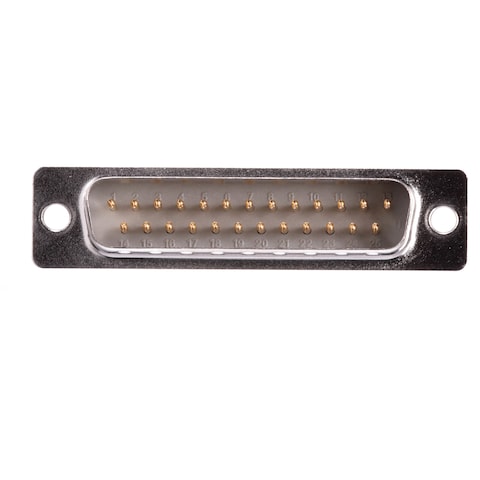

9672255604

HARTING

Images are for reference only
See Product Specifications

Mouser No:

Not Assigned

Mfr. No:

9672255604

Mfr.:

HARTING

Description:

D-Sub Standard Connectors D-Sub 25pin male solder cup stamped contacts PL3

Datasheet:

9672255604 Datasheet (PDF)

Availability

Stock:: Non-Stocked, Call To Request a Quote

An unexpected error occurred. Please try again later.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	HARTING
Product Category:	D-Sub Standard Connectors
Number of Positions:	25 Position
Contact Gender:	Pin (Male)
Termination Style:	Solder Cup
Mounting Style:	Wire
Mounting Angle:	Straight
Number of Rows:	2 Row
Gender:	Male
Type:	Plug
Shell Size:	3 (B)
Filtered:	Unfiltered
Brand:	HARTING
Product Type:	D-Sub Connectors - Standard Density
Subcategory:	D-Sub Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

9672255604 Datasheet (PDF)

TARIC:: 8536699099
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
