09150043014

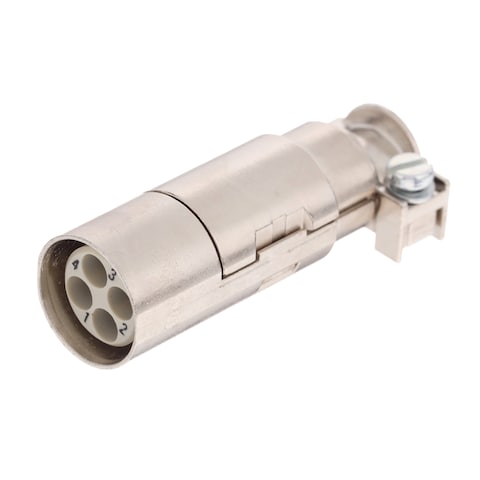

Name: HARTING 09150043014
Brand: HARTING
SKU: 617-09150043014
Price: 31.57 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

617-09150043014

Mfr. No:

09150043014

Mfr.:

HARTING

Description:

Standard Circular Connector HAN 4 QUINTAX STI-C

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about HARTING 09150043014

In Stock: 4

Stock:: 4 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	31,57 €	31,57 €
	26,21 €	262,10 €
	25,03 €	625,75 €
	23,95 €	1.197,50 €
	22,81 €	2.281,00 €
	21,76 €	5.440,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	HARTING
Product Category:	Standard Circular Connector
RoHS:
Number of Positions:	4 Position
Mounting Style:	Cable
Series:	Han Quintax
Packaging:	Bulk
Brand:	HARTING
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Housing Gender:	Male
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	Han
Part # Aliases:	09-15-004-3014 09 15 004 3014 9150043014

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

PCN

Product Change Notification (PDF)

TARIC:: 8537109899
CNHTS:: 8538900000
USHTS:: 8537200040
ECCN:: EAR99

Han-Modular® Inserts & Contacts

HARTING Han-Modular® product line features a range of modular inserts that enable the simple assembly of custom-designed connectors. Multiple termination styles, including IDC, screw, and crimp, are available. The HARTING Han-Modular guards are available in multi-color options for quick and easy visual identification of the connection. This helps to reduce the risk of mismating in the field.

Han-Modular® Connector System

HARTING Han-Modular® Heavy-Duty Connector System is designed to provide users with a very high degree of connectivity and manufacturing flexibility. Han-Modular connectors can combine electrical, optical, and gaseous signal and power connections in one easy assembly. Basic modules snap into the mounting frame and can be exchanged separately anytime. Combinations of 1 to 12 modules are possible, depending on the size of the hood and housing chosen. Han-Modular consists of more than 40 module types and can connect to currents from 5A up to 200A, voltages from 50V to 5000V, pneumatic tubes from 1.6mm up to 10mm inner diameter, sensitive bus signals, and fiber-optic signals in both POF. and glass fiber cables. Han-Modular offers a range of basic modules developed to meet the vast majority of user application requirements. This product offering allows users to choose the hoods and housings, inserts, and accessories that best meet design requirements.
