09052486831

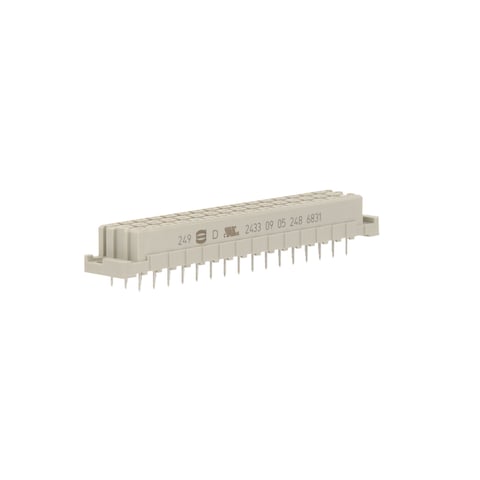

Name: HARTING 09052486831
Brand: HARTING
SKU: 617-09-05-248-6831
Price: 10.07 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

617-09-05-248-6831

Mfr. No:

09052486831

Mfr.:

HARTING

Description:

DIN 41612 Connectors 48P 6A FEMALE STRT

Datasheet:

09052486831 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about HARTING 09052486831

In Stock: 1.077

Stock:: 1.077

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 880

Expected 6/16/2026
Factory Lead Time:: 6

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,07 €	10,07 €
	8,20 €	82,00 €
	7,80 €	156,00 €
	7,58 €	454,80 €
	7,31 €	731,00 €
	6,83 €	1.775,80 €
	6,53 €	3.265,00 €
	6,22 €	6.220,00 €
2.500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	HARTING
Product Category:	DIN 41612 Connectors
RoHS:
Product:	Receptacles
Number of Positions:	48 Position
Number of Rows:	3 Row
Pitch:	5.08 mm
Type:	Type E
Termination Style:	Solder Pin
Mounting Angle:	Straight
Current Rating:	6 A
Contact Plating:	Nickel
Contact Material:	Copper Alloy
Series:	DIN-Power E
Packaging:	Tray
Brand:	HARTING
Housing Material:	Thermoplastic (TP)
Product Type:	DIN 41612 Connectors
Rows Loaded:	a + c + e
Factory Pack Quantity:	20
Subcategory:	Backplane Connectors
Tail Length:	4 mm
Tradename:	DIN-Power
Part # Aliases:	09-05-248-6831 09 05 248 6831 9052486831
Unit Weight:	16,680 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

09052486831 Datasheet (PDF)

Images

Models

Specification Sheets

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Romania
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

DIN 41612 Connectors

HARTING DIN 41612 connector family comprises the industry's widest range of DIN 41612 signal, power, mixed, 64 VME 64x, and DIN 41612 shell housings and accessories. HARTING DIN 41612 connectors can be custom-loaded to suit any application.

PCB Connection Technology Solutions

HARTING PCB Connection Technology Solutions include a comprehensive portfolio of connectors, terminal blocks, cordsets, and Ethernet interfaces. This HARTING product lineup for PCB Connection Technology Solutions is ideal for machinery, communications, controllers, drivers, sensors, and medical device applications.
