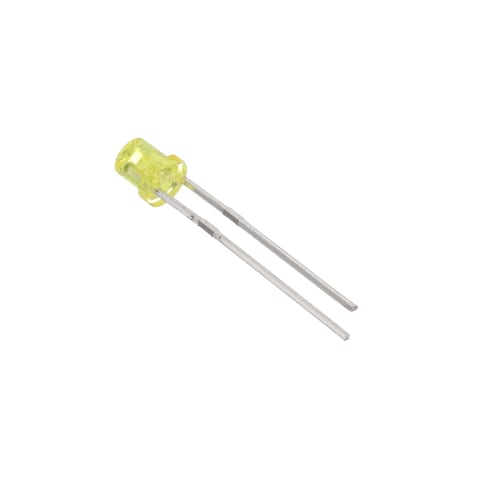

EALP03RDDYA0

Images are for reference only
See Product Specifications

Mouser No:

638-EALP03RDDYA0

Mfr. No:

EALP03RDDYA0

Mfr.:

Everlight

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Shipping Alert:

Mouser does not presently sell this product in your region.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Everlight
Product Category:	Single Colour LEDs
Delivery Restrictions:	Mouser does not presently sell this product in your region.
RoHS:
Product:	Yellow LEDs
Mounting Style:	Through Hole
Wavelength/Colour Temperature:	589 nm
Illumination Colour:	Yellow
If - Forward Current:	20 mA
Vf - Forward Voltage:	2 V
Power Rating:	60 mW
Lens Colour:	Yellow
Lens Dimensions:	3 mm
Lens Shape:	Round Flat
Lens Transparency:	Clear
Brand:	Everlight
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Height:	3.8 mm
Length:	3.8 mm
Luminous Intensity:	32 mcd
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Product Type:	Single Color LEDs
Factory Pack Quantity:	1000
Subcategory:	LEDs
Type:	Single Color LEDs
Viewing Angle:	110 deg
Width:	3.6 mm
Part # Aliases:	L111003575
