TR-1350HV7-5-R

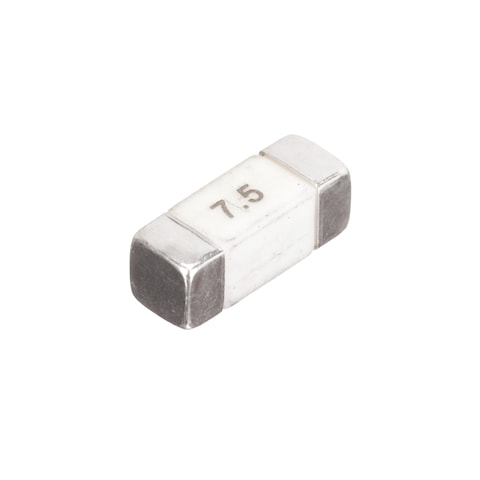

Name: Eaton TR-1350HV7-5-R
Brand: Eaton Electronics
SKU: 504-TR-1350HV7-5-R
Price: 4.1 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

504-TR-1350HV7-5-R

Mfr. No:

TR-1350HV7-5-R

Mfr.:

Eaton Electronics

Description:

Surface Mount Fuses 1350HV HV FUSE, 7.5A

Datasheet:

TR-1350HV7-5-R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Eaton Electronics TR-1350HV7-5-R

In Stock: 331

Stock:: 331 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1000)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	4,10 €	4,10 €
	3,16 €	31,60 €
	2,63 €	131,50 €
	2,43 €	243,00 €
	2,18 €	545,00 €
	2,02 €	1.010,00 €
Full Reel (Order in multiples of 1000)
	1,85 €	1.850,00 €
	1,81 €	3.620,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Surface Mount Fuses
RoHS:
Series:	1350HV
Product:	Surface Mount Fuses
Fuse Type:	Fast Blow
Current Rating:	7.5 A
Voltage Rating AC:	350 VAC
Voltage Rating DC:	400 VDC
Interrupt Rating:	200 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Resistance:	13.5 mOhms
Brand:	Eaton Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Height:	5 mm
Length:	13 mm
Product Type:	SMD Fuses
Factory Pack Quantity:	1000
Subcategory:	Fuses
Type:	Brick Fuse
Width:	5 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

TR-1350HV7-5-R Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536100000
CAHTS:: 8536100000
USHTS:: 8536100040
JPHTS:: 853610000
BRHTS:: 85361000
ECCN:: EAR99

Fuses & Fuse Holders

Bussmann / Eaton Fuses and Fuse Holders are designed to provide overcurrent protection against harmful surges that cause critical damage. These fuses are offered in various sizes and are suitable for a wide range of applications, including automotive, power conversion, EV charging stations, industrial control panels, and material handling systems. Bussmann / Eaton Fuses and Fuse Holders provide various mounting options and configurations, ensuring an ideal solution can be found for any project.

1145HV(A)/1350HV High Voltage Fast-Acting Fuses

Eaton Electronics 1145HV(A) and 1350HV High Voltage Fast-Acting Brick Fuses provide reliable overcurrent protection up to 5A for high voltage applications. These surface-mount fuses are available in two sizes: 11mm x 5.0mm² [1145HV(A)] and 13mm x 5.0mm² (1350HV). The high voltage ratings and SMD package help reduce the required PCB space. The 1145HVA series components are AEC-Q200 qualified and ideally suited for xEV powertrains and applications.

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.
