MDL-1/10-R

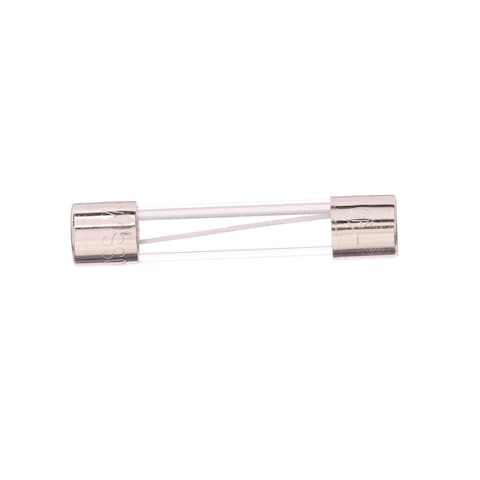

Name: Eaton MDL-1/10-R
Brand: Eaton Electronics
SKU: 504-MDL-1-10-R
Price: 13.23 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

504-MDL-1-10-R

Mfr. No:

MDL-1/10-R

Mfr.:

Eaton Electronics

Description:

Cartridge Fuses SMALL DIMENSION FUSE

Datasheet:

MDL-1/10-R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Eaton Electronics MDL-1/10-R

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 20 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,23 €	13,23 €
	8,50 €	42,50 €
	7,51 €	75,10 €
	7,02 €	351,00 €
	6,76 €	676,00 €
	6,55 €	1.637,50 €

Alternative Packaging

Mfr. Part No.:

BK/MDL-1/10-R

Packaging:

Bulk

Availability:

In Stock

Price:

5,83 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Cartridge Fuses
RoHS:
Series:	MDL
Product:	Glass Fuses
Current Rating:	100 mA
Fuse Type:	Time Delay / Slow Blow
Fuse Size/Group:	3AG (6.3 mm x 32 mm)
Voltage Rating AC:	250 VAC
Mounting Style:	Holder / Clip
Termination Style:	Clip
Packaging:	Bulk
Body Style:	Cylindrical
Brand:	Eaton Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Diameter:	6.35 mm
Indicator Style:	Without Indicator
Length:	31.75 mm
Product Type:	Electronic Time Delay Ferrule Fuse
Factory Pack Quantity:	5
Subcategory:	Fuses
Part # Aliases:	MDL-1-10-R
Unit Weight:	3,175 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MDL-1/10-R Datasheet (PDF)

PCN

Shipping Box External and Internal Label Update (PDF)

EU Declaration of Conformity (PDF)

CNHTS:: 8536100000
CAHTS:: 8536100000
USHTS:: 8536100020
JPHTS:: 853610000
KRHTS:: 8536109000
BRHTS:: 85361000
ECCN:: EAR99

Fuses & Fuse Holders

Bussmann / Eaton Fuses and Fuse Holders are designed to provide overcurrent protection against harmful surges that cause critical damage. These fuses are offered in various sizes and are suitable for a wide range of applications, including automotive, power conversion, EV charging stations, industrial control panels, and material handling systems. Bussmann / Eaton Fuses and Fuse Holders provide various mounting options and configurations, ensuring an ideal solution can be found for any project.

MDL Time-Delay Glass Tube Fuses

Eaton Electronics MDL Time-Delay Glass Tube Fuses feature nickel-plated brass endcap construction and are UL Listed to standard 248-14. Rated currents for the MDL series are 3A to 30A depending on the module. Sized at 1.4" x 1 1/4" (6.4 x 31.7mm), the MDL Series Time-Delay Glass Tube Fuses are available are RoHS compliant and are available with axial leads.

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.
