BK1/S500-3.15-R

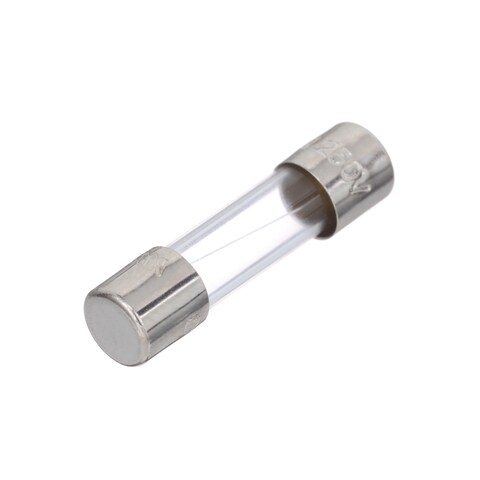

Name: Eaton BK1/S500-3.15-R
Brand: Eaton Electronics
SKU: 504-BK1/S500-3.15-R
Price: 0.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

504-BK1/S500-3.15-R

Mfr. No:

BK1/S500-3.15-R

Mfr.:

Eaton Electronics

Description:

Cartridge Fuses 250V 3.15A FA 5X20MM GLASS

Datasheet:

BK1/S500-3.15-R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 469

Stock:: 469 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,327 €	0,33 €
	0,298 €	2,98 €
	0,247 €	12,35 €
	0,228 €	22,80 €
	0,205 €	51,25 €
	0,189 €	94,50 €
	0,174 €	174,00 €
	0,169 €	338,00 €
	0,144 €	720,00 €

Alternative Packaging

Mfr. Part No.:

BK/S500-3.15-R

Packaging:

Bulk

Availability:

In Stock

Price:

0,33 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Cartridge Fuses
RoHS:
Series:	S500
Product:	Glass Fuses
Current Rating:	3.15 A
Fuse Type:	Fast Blow
Fuse Size/Group:	5 mm x 20 mm
Voltage Rating AC:	250 VAC
Mounting Style:	Holder / Clip
Termination Style:	Clip
Packaging:	Bulk
Body Style:	Cylindrical
Brand:	Eaton Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Diameter:	5.2 mm
Indicator Style:	Without Indicator
Length:	20 mm
Product Type:	European Ferrule Fuse
Factory Pack Quantity:	1000
Subcategory:	Fuses
Part # Aliases:	BK1-S500-3-15-R
Unit Weight:	750 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

BK1/S500-3.15-R Datasheet (PDF)

PCN

Shipping Box External and Internal Label Update (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536100000
CAHTS:: 8536100000
USHTS:: 8536100020
JPHTS:: 8536100005
KRHTS:: 8536101000
BRHTS:: 85361000
ECCN:: EAR99

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.
