AGC-V-3-1/2-R

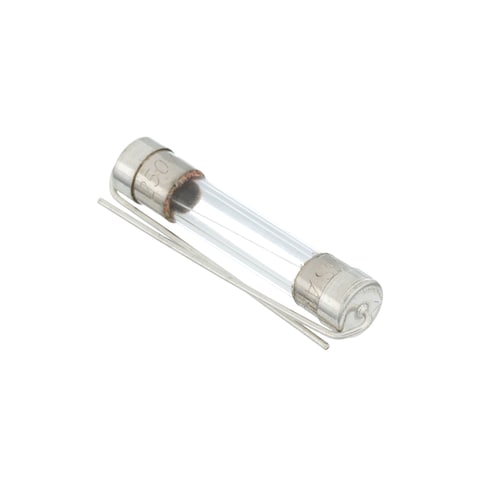

Name: Eaton AGC-V-3-1/2-R
Brand: Eaton Electronics
SKU: 504-AGC-V-3-1-2-R
Price: 4.25 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

504-AGC-V-3-1-2-R

Mfr. No:

AGC-V-3-1/2-R

Mfr.:

Eaton Electronics

Description:

Cartridge Fuses SMALL DIMENSION FUSE

Datasheet:

AGC-V-3-1/2-R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Eaton Electronics AGC-V-3-1/2-R

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,25 €	4,25 €
	3,19 €	38,28 €
	2,85 €	148,20 €
	2,74 €	274,00 €
	2,61 €	657,72 €
	2,49 €	1.245,00 €
	2,30 €	2.300,00 €
	2,25 €	5.625,00 €
	2,20 €	11.000,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Cartridge Fuses
RoHS:
Series:	AGC
Product:	Glass Fuses
Current Rating:	3.5 A
Fuse Type:	Fast Blow
Fuse Size/Group:	3AG (6.3 mm x 32 mm)
Voltage Rating AC:	250 VAC
Voltage Rating DC:	32 VDC
Interrupt Rating:	10 kA
Mounting Style:	Board Mount
Termination Style:	Axial
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Body Style:	Cylindrical Leaded
Brand:	Eaton Electronics
Diameter:	6.35 mm
Indicator Style:	Without Indicator
Length:	32.82 mm
Product Type:	Fast-Acting Glass Tube Fuses
Factory Pack Quantity:	4
Subcategory:	Fuses
Type:	Fast-acting Fuse
Part # Aliases:	AGC-V-3-1-2-R
Unit Weight:	453,592 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AGC-V-3-1/2-R Datasheet (PDF)

PCN

Shipping Box External and Internal Label Update (PDF)

EU Declaration of Conformity (PDF)

Compliance Codes

CNHTS:: 8536100000
CAHTS:: 8536100000
USHTS:: 8536100020
JPHTS:: 853610000
KRHTS:: 8536109000
BRHTS:: 85361000
ECCN:: EAR99

Origin Classifications

Country of Origin:: Taiwan
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Fuses & Fuse Holders

Eaton Electronics Fuses and Fuse Holders are available in a wide range of fuses, including blade-type, ferrule, radial-leaded, surface-mount chip, and brick. The portfolio includes automotive, cartridge, industrial, and electrical fuses. The Fuses are designed to offer reliable overcurrent and overvoltage circuit protection.

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.

AGC Fast-Acting Glass Tube Fuses

Eaton Electronics AGC Glass Tube Fuses are UL 248-14 fast-acting fuses in a 6.3mm x 32mm (0.25" x 1.25") package. Eaton AGC fuses provide overcurrent protection in power supplies, battery chargers, monitors, consumer electronics, and test equipment. AGC fast-acting fuses operate over a -55°C to +125°C operating temperature range and a 0.1A to 40A current rating range.
