B65844W1010D001

Name: TDK B65844W1010D001
Brand: EPCOS / TDK
SKU: 871-B65844W1010D001
Price: 1.26 EUR
Availability: InStock

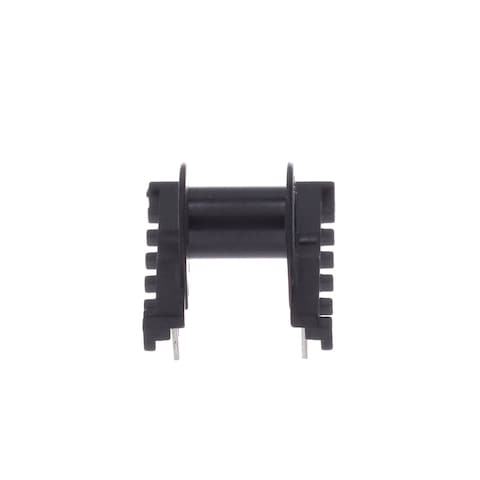

Images are for reference only
See Product Specifications

Mouser No:

871-B65844W1010D001

Mfr. No:

B65844W1010D001

Mfr.:

EPCOS / TDK

Description:

Ferrite Cores & Accessories COIL FORMER SUMIKON PM 9630

Datasheet:

B65844W1010D001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about EPCOS / TDK B65844W1010D001

In Stock: 1.380

Stock:: 1.380

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 2.000

Expected 8/25/2026
Factory Lead Time:: 26

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,26 €	1,26 €
	0,877 €	8,77 €
	0,749 €	18,73 €
	0,663 €	33,15 €
	0,583 €	58,30 €
	0,507 €	126,75 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TDK
Product Category:	Ferrite Cores & Accessories
RoHS:
Series:	EP13
Product:	Hardware & Accessories
Type:	Ungapped
Core:	EP Core
Core Size:	EP 13
Accessory Type:	Coil Former with Solder Pins
Number of Pins:	10 Pin
Termination Style:	Pin
Packaging:	Tray
Brand:	EPCOS / TDK
Inside Diameter:	4.6 mm
Lead Spacing:	0.45 mm
Maximum DC Resistance:	57.1 uOhms
Outside Diameter:	9.5 mm
Outside Height:	5.75 mm
Outside Length:	15.9 mm
Outside Width:	14.8 mm
Product Type:	Ferrite Cores & Accessories
Factory Pack Quantity:	500
Subcategory:	Ferrites
Part # Aliases:	B65844W1010D1
Unit Weight:	4,500 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8504901100
CNHTS:: 8504909000
USHTS:: 8504909610
JPHTS:: 850490000
KRHTS:: 8504909000
MXHTS:: 8504909901
ECCN:: EAR99

Ferrite Cores & Accessories

EPCOS / TDK Ferrite Cores and Accessories feature polycrystal, sintered material construction with high electrical resistivity and distributed air gaps. These ferrites are ideal for transportation equipment and medical devices. Ferrite cores include E core, ETD core, PM core, U core, PS core, RM core, EFD core, and more. A wide variety of accessories is also available.

EP Ferrite Core Transformers

EPCOS / TDK EP Ferrite Core Transformers feature high inductance and low overall height for power applications. The EP 5 and EP 6 series are suitable for high precise feedthrough gapping and are designed for small interface transformers and filter chokes. The EP 7, EP 10, EP 13, and EP 20 series are designed to IEC 61596 specifications. The EPO 13 series is a lower-profile version of EP 13 and is 1.6mm lower than EP 13 transformers with distortion performance close to EP 13 and compatibility with EP 13 coils. EPCOS / TDK EP Ferrite Core Transformers are available in gapped and ungapped versions.
