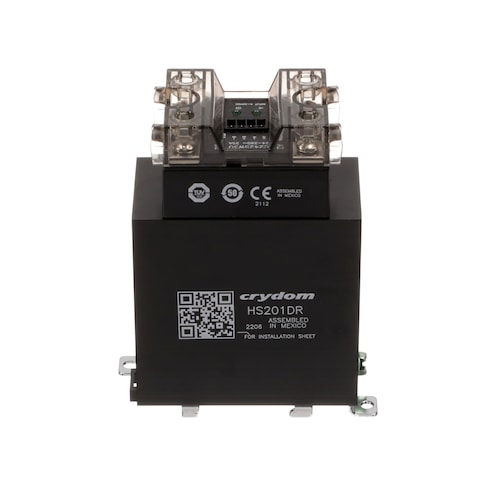

HS201DR-CC2425W3U

Crydom
558-HS201DRCC2425W3U
HS201DR-CC2425W3U

Mfr.:

Description:
Solid State Relays - SSRs 35A/240V DC Input ZC SSR Mounted Heatsink

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:
0

You can still purchase this product for backorder.

On Order:
10
Expected 6/8/2026
Factory Lead Time:
14
Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:
This Product Ships FREE

Pricing (EUR)

Qty. Unit Price
Ext. Price
157,13 € 157,13 €
149,63 € 1.496,30 €
142,85 € 7.142,50 €
100 Quote

Product Attribute Attribute Value Select Attribute
Sensata
Product Category: Solid State Relays - SSRs
RoHS:
Heat Sink Assemblies
SSR
DIN Rail Mount
35 A
24 VAC to 280 VAC
2 Form A (DPST-NO)
4 VDC to 32 VDC
10 mA
- 40 C
+ 80 C
HS201DR
97 mm
81 mm
122.7 mm
Each
Brand: Crydom
Product Type: SSR - Solid State Relays
Factory Pack Quantity: 10
Subcategory: Relays
Unit Weight: 440 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Images

This functionality requires JavaScript to be enabled.

TARIC:
8541490000
CNHTS:
7616991090
CAHTS:
8541490020
USHTS:
8541498000
JPHTS:
854149000
KRHTS:
8536490000
MXHTS:
8541499900
BRHTS:
85414900
ECCN:
EAR99

HS Series Heatsinks

Crydom HS Series Heatsinks are available with a variety of features. The HS series Heatsinks from Crydom include models that feature DIN rail mounting; panel mounting; thermal resistances from .07ºC/w to 5.0ºC/W; 1, 2, or 3 single or dual SSRs; and one 3 phase SSR.
