HS103DR-HD6090

Name: Sensata HS103DR-HD6090
Brand: Crydom
SKU: 558-HS103DR-HD6090
Price: 242.15 EUR
Availability: OutOfStock

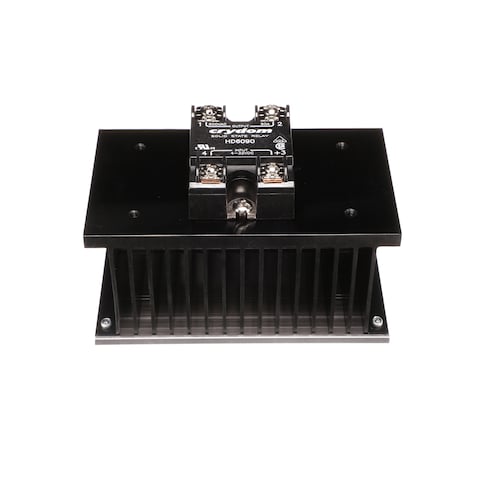

Images are for reference only
See Product Specifications

Mouser No:

558-HS103DR-HD6090

Mfr. No:

HS103DR-HD6090

Mfr.:

Crydom

Description:

Solid State Relays - SSRs 55A/660V DC Input ZC SSR Mounted Heatsin

Datasheet:

HS103DR-HD6090 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 5 Multiples: 5

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	242,15 €	1.210,75 €
	230,47 €	2.304,70 €
	224,80 €	11.240,00 €
100	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Sensata
Product Category:	Solid State Relays - SSRs
RoHS:
REACH - SVHC:
Product:	Heat Sink Assemblies
Type:	SSR
Mounting Style:	DIN Rail Mount
Load Current Rating:	55 A
Load Voltage Rating:	48 VAC to 660 VAC
Relay Contact Form:	1 Form A (SPST-NO)
Control Voltage Range:	4 VDC to 32 VDC
Input Current:	7 mA to 12 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 80 C
Series:	22 - HS
Length:	5.2 in
Width:	3.21 in
Height:	3.65 in
Packaging:	Each
Brand:	Crydom
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Product Type:	SSR - Solid State Relays
Factory Pack Quantity:	5
Subcategory:	Relays
Unit Weight:	859 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536490099
CNHTS:: 7616991090
CAHTS:: 8536490040
USHTS:: 8536490080
JPHTS:: 8536490001
KRHTS:: 8536490000
BRHTS:: 85364900
ECCN:: EAR99

HS Series Heatsinks

Crydom HS Series Heatsinks are available with a variety of features. The HS series Heatsinks from Crydom include models that feature DIN rail mounting; panel mounting; thermal resistances from .07ºC/w to 5.0ºC/W; 1, 2, or 3 single or dual SSRs; and one 3 phase SSR.
