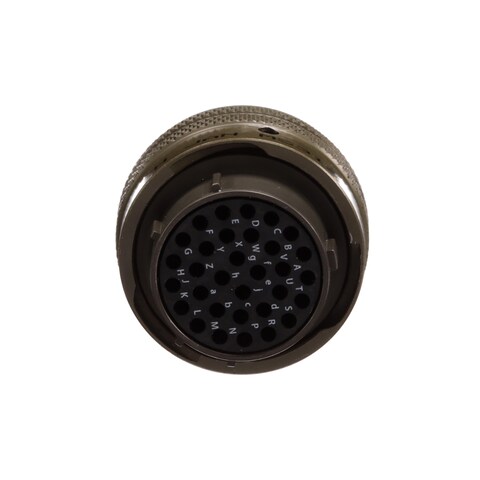

MS3126F18-32S

Images are for reference only
See Product Specifications

Mouser No:

530-MS3126F18-32S

Mfr. No:

MS3126F18-32S

Mfr.:

Cinch

Lifecycle:

Obsolete

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Shipping Alert:

Mouser does not presently sell this product in your region.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Cinch Connectivity Solutions
Product Category:	Circular MIL Spec Connector
Delivery Restrictions:	Mouser does not presently sell this product in your region.
Number of Positions:	32 Position
Contact Gender:	Socket (Female)
Insert Arrangement:	18-32
Product:	Plugs
Shell Size:	18
Shell Style:	Straight
MIL Type:	MIL-DTL-26482 I
Termination Style:	Crimp
Mounting Style:	Cable
Current Rating:	7.5 A
Contact Plating:	Gold
Contact Material:	Copper Alloy
Packaging:	Each
Brand:	Cinch
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Cadmium
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Wire Gauge:	24 AWG to 20 AWG
Unit Weight:	96 g
