DTB50GMFH-02

Name: Aptiv DTB50GMFH-02
Brand: Aptiv (formerly Delphi)
SKU: 649-DTB50GMFH-02
Price: 20.1 EUR
Availability: InStock

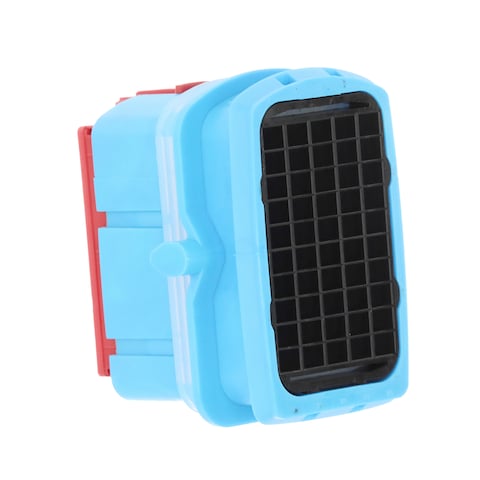

Images are for reference only
See Product Specifications

Mouser No:

649-DTB50GMFH-02

Mfr. No:

DTB50GMFH-02

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors 50 WAY FML HSG SEALED BL SICMA 1.5

Datasheet:

DTB50GMFH-02 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) DTB50GMFH-02

In Stock: 83

Stock:: 83 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 20 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	20,10 €	20,10 €
	11,85 €	296,25 €
	11,39 €	569,50 €
	10,96 €	986,40 €
	9,84 €	5.313,60 €
	9,52 €	10.281,60 €
2.520	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Color:	Blue
Series:	SICMA 1.5
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Automotive Connectors
Factory Pack Quantity:	90
Subcategory:	Automotive Connectors
Tradename:	SICMA
Part # Aliases:	33512037

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DTB50GMFH-02 Datasheet (PDF)

TARIC:: 8547200090
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

Sicma Mini-Sealed Connectors

Aptiv Sicma Mini-Sealed Connectors are compatible with the standard interface footprints of several devices used in automobiles and commercial vehicles. These connectors provide reliable inline harness sectioning and mechanical coding. They offer a compact mat-sealed design around a 1.5mm or 2.8mm terminal. Other features include jet-spray water protection, 25G vibration rating, <80N connector mating force, and IP68/IPX9K sealing protection. Aptiv Sicma Mini-Sealed Connectors are well suited for use in body and chassis applications as well as in engine compartments.

Sicma Connectors

Aptiv Sicma Connectors feature a comprehensive range of sealed and unsealed connectors and headers, including inline, panel-through, interconnect, miniature, and onboard diagnostic. The mat- or cable-sealed connectors offer IP protection and are ideally suited for harsh applications. Aptiv Sicma Connectors are available in a variety of centerline spacing options and cavity counts (ways) with 0.64mm, 1.5mm, 2.8mm, or mixed cavity configurations. Applications include engine compartments, chassis, dashboards, cockpits, and much more.
