33314147

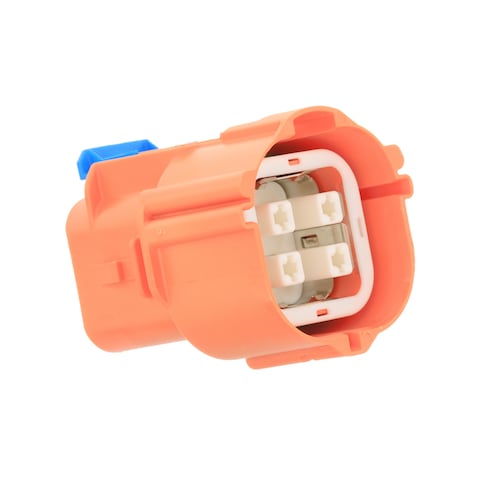

Name: Aptiv 33314147
Brand: Aptiv (formerly Delphi)
SKU: 829-33314147
Price: 28.02 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-33314147

Mfr. No:

33314147

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors ASM CONN 4 F H/VOLTAGE 2.8 MULTI SLD

Datasheet:

33314147 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 33314147

In Stock: 1

Stock:: 1 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 39 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	28,02 €	28,02 €
	16,51 €	412,75 €
	15,87 €	793,50 €
	10,98 €	1.098,00 €
	9,14 €	5.264,64 €
	9,04 €	10.414,08 €
2.688	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Orange
Series:	HV CTS280 SI
Brand:	Aptiv (formerly Delphi)
Current Rating:	40 A
Family:	SHIELDPACK
Height:	48.34 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	63.8 mm
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Operating Temperature Range:	- 40 C to + 125 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	192
Subcategory:	Automotive Connectors
Tradename:	Shield-Pack
Voltage Rating:	1 kV
Width:	47 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

33314147 Datasheet (PDF)

Compliance Codes

TARIC:: 8547200000
CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Mexico
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

HV Auxiliary Modules Solutions

Aptiv HV Auxiliary Modules Solutions offers high-voltage connection systems designed specifically for auxiliary modules' voltage and current needs. These systems are ideal for PTC heaters, DC / DC converters, onboard chargers (OBC), electric packs, and HV power distribution units (PDU).

Electrification Solutions

Aptiv Electrification Solutions offers one of the most comprehensive portfolios of high-power connection systems. Aptiv connection systems provide unique expertise in architecture optimization and systems integration. Aptiv is pushing the innovations required for multi-voltage architectures.
