15492567-B

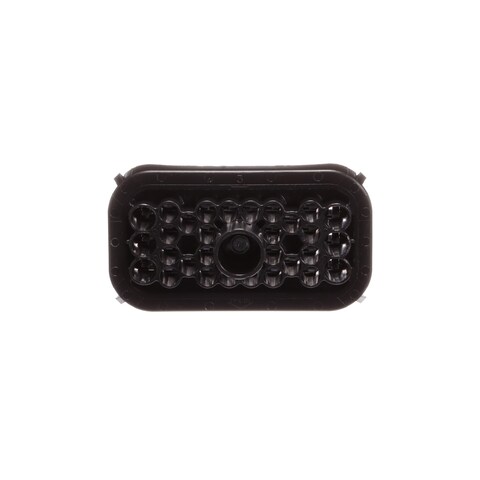

Name: Aptiv 15492567-B
Brand: Aptiv (formerly Delphi)
SKU: 829-15492567-B
Price: 25.7 EUR
Availability: LimitedAvailability

Images are for reference only
See Product Specifications

Mouser No:

829-15492567-B

Mfr. No:

15492567-B

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors CON MP 280 480 30W FEM ASY

Lifecycle:

Restricted Availability:

This part number is not currently available from Mouser. Product may be in limited distribution or a factory special order.

Datasheet:

15492567-B Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 15492567-B

In Stock: 90

Stock:: 90 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 90 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	25,70 €	25,70 €
	15,15 €	303,00 €
	14,56 €	873,60 €
	14,01 €	1.401,00 €
	12,58 €	6.290,00 €
1.000	Quote

Alternative Packaging

Mfr. Part No.:

15492567

Packaging:

Bulk

Availability:

In Stock

Price:

12,85 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	30 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Tin
Color:	Black
Series:	Metri-Pack 280
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Contact Gender:	Without Socket Contacts
Housing Material:	Polybutylene Terephthalate (PBT)
Number of Rows:	10 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	20
Subcategory:	Automotive Connectors
Tradename:	Metri-Pack
Wire Gauge Range:	12 AWG to 14 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0


Delphi Part Number Suffix

The suffix in the part number is for packaging purposes only,
the "-L " is the loose piece version and the "-B" is the broken
package version. There is no difference in fit, form, or
function between the parts ending in "-L or -B" and the
standard part number.


If you require any other assistance, please contact a Mouser
Technical Sales Representative.


5-1011-4

Filter Document:

Datasheet

15492567-B Datasheet (PDF)

Compliance Codes

TARIC:: 8547200090
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

Origin Classifications

Country of Origin:: Mexico
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Metri-Pack 280 Connectors

Aptiv (formerly Delphi) Metri-Pack 280 Connectors provide a 30A continuous maximum current rating and standard ISO 2.8mm configuration. The 280 series connectors have a 2.8mm blade width, 5mm or 7.7mm centerline spacing, and 0.35mm² to 5mm² cable range. They offer <10mΩ @ 20mV resistance and an operating temperature range of -40°C to +125°C. They feature low energy and low voltage capabilities as well as excellent resistance to temperatures, chemicals, and abrasion. Aptiv Metri-Pack 280 Connectors are designed to meet or exceed the requirements for most marine, appliance, and industrial control applications.

Metri-Pack Connectors

Aptiv Metri-Pack Connectors are a family of electrical connection systems that offer design flexibility and application versatility. The connectors are resistant to extreme temperatures, chemicals, and abrasion. They utilize Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability. Strong, stable terminals ensure correct alignment. Aptiv Metri-Pack Connectors are designed for low-energy electronic circuits or power circuit applications, including as high-performance interconnects in sealed or unsealed versions, environmentally sealed electronic headers, junction blocks, electrical centers, and much more.
