12020213

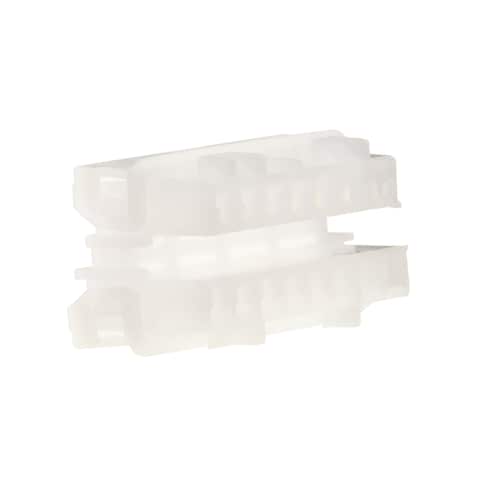

Name: Aptiv 12020213
Brand: Aptiv (formerly Delphi)
SKU: 829-12020213
Price: 8.56 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-12020213

Mfr. No:

12020213

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors CON MP 280 15W FEM

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

Datasheet:

12020213 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 12020213

In Stock: 15.605

Stock:: 15.605 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 15605 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,56 €	8,56 €
	5,05 €	126,25 €
	4,86 €	243,00 €
	4,68 €	468,00 €
	4,20 €	2.100,00 €
	4,06 €	4.060,00 €
	3,63 €	6.534,00 €
5.400	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	15 Position
Gender:	Receptacle (Female)
Series:	Metri-Pack 280
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	+/- 30 A to +/- 35 A
Family:	Metri-Pack
Material:	Polypropylene (PP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	1800
Subcategory:	Automotive Connectors
Tradename:	Metri-Pack
Unit Weight:	9,594 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

12020213 Datasheet (PDF)

EOL

Product Discontinuation Notification_2024_08_16 (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690090
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Metri-Pack 280 Connectors

Aptiv (formerly Delphi) Metri-Pack 280 Connectors provide a 30A continuous maximum current rating and standard ISO 2.8mm configuration. The 280 series connectors have a 2.8mm blade width, 5mm or 7.7mm centerline spacing, and 0.35mm² to 5mm² cable range. They offer <10mΩ @ 20mV resistance and an operating temperature range of -40°C to +125°C. They feature low energy and low voltage capabilities as well as excellent resistance to temperatures, chemicals, and abrasion. Aptiv Metri-Pack 280 Connectors are designed to meet or exceed the requirements for most marine, appliance, and industrial control applications.

Metri-Pack Connectors

Aptiv Metri-Pack Connectors are a family of electrical connection systems that offer design flexibility and application versatility. The connectors are resistant to extreme temperatures, chemicals, and abrasion. They utilize Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability. Strong, stable terminals ensure correct alignment. Aptiv Metri-Pack Connectors are designed for low-energy electronic circuits or power circuit applications, including as high-performance interconnects in sealed or unsealed versions, environmentally sealed electronic headers, junction blocks, electrical centers, and much more.
