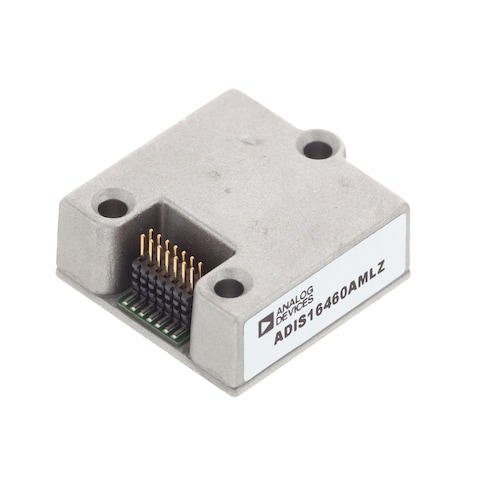

ADIS16460AMLZ

Name: Analog Devices Inc. ADIS16460AMLZ
Brand: Analog Devices
SKU: 584-ADIS16460AMLZ
Price: 416.83 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

584-ADIS16460AMLZ

Mfr. No:

ADIS16460AMLZ

Mfr.:

Analog Devices

Description:

IMUs - Inertial Measurement Units Compact Precision 6 Deg of Freedom IMU

Lifecycle:

End of Life:

Scheduled for obsolescence and will be discontinued by the manufacturer.

Datasheet:

ADIS16460AMLZ Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 23

Stock:: 23 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 23 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	416,83 €	416,83 €
	416,74 €	2.083,70 €
	410,76 €	4.107,60 €
30	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	IMUs - Inertial Measurement Units
RoHS:
Mounting Style:	SMD/SMT
Package/Case:	ML-14
Sensor Type:	6-axis
Interface Type:	SPI
Output Type:	Digital
Acceleration:	5 g
Resolution:	32 bit
Sensitivity:	0.005 deg/s/LSB
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Supply Voltage - Min:	3.15 V
Supply Voltage - Max:	3.45 V
Operating Supply Current:	44 mA
Packaging:	Tray
Series:	ADIS16460
Bandwidth:	375 Hz
Brand:	Analog Devices
Product Type:	IMUs - Inertial Measurement Units
Range:	100 deg/s
Sensing Axis:	X, Y, Z
Factory Pack Quantity:	15
Subcategory:	Sensors
Tradename:	iSensor
Unit Weight:	15 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8542399000
CNHTS:: 8542391090
CAHTS:: 8542390000
USHTS:: 8542390090
JPHTS:: 854239099
MXHTS:: 8542399999
ECCN:: 7A994

Origin Classifications

Country of Origin:: Philippines
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

ADIS16460 iSensor® MEMS IMU

Analog Devices ADIS16460 iSensor® MEMS IMU offers a full inertial system complete with a triaxial accelerometer and triaxial gyroscope. Industry-leading iMEMS® technology and signal conditioning are integrated into each sensor to optimize dynamic performance. Each sensor is factory calibrated for bias, alignment, and sensitivity. This process allows each sensor to have its own dynamic compensation formulas. The dynamic compensation formulas ensure highly accurate sensor measurements. Data collection and configuration control are delivered through a simple interface using SPI and register structures. Using the ADIS16460 gives designers a simple method for integrating accurate, multi-axis inertial sensing in industrial systems. ADIS16460's tight orthogonal alignment simplifies inertial frame alignment for navigation systems.
