AHDP06-24-91S-BS2

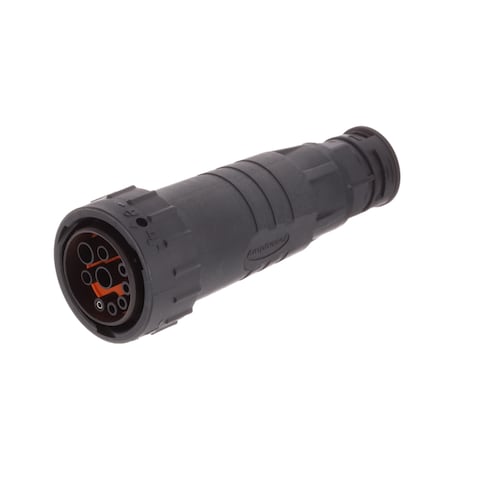

Name: Amphenol AHDP06-24-91S-BS2
Brand: Amphenol Tuchel
SKU: 523-AHDP062491SBS2
Price: 36.17 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-AHDP062491SBS2

Mfr. No:

AHDP06-24-91S-BS2

Mfr.:

Amphenol Tuchel

Description:

Automotive Connectors CONN w conduit adpt NW17

Datasheet:

AHDP06-24-91S-BS2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Tuchel AHDP06-24-91S-BS2

In Stock: 23

Stock:: 23 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	36,17 €	36,17 €
	30,19 €	301,90 €
	28,63 €	572,60 €
	27,26 €	1.363,00 €
	25,35 €	2.535,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	9 Position
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Nickel
Color:	Black
Series:	ISOBUS
Packaging:	Bulk
Brand:	Amphenol Tuchel
Contact Gender:	Socket (Female)
Contact Material:	Copper Alloy
Description/Function:	With conduit adapter NW17
Flammability Rating:	UL 94 V-0
Housing Material:	Polyamide (PA)
Length:	102 mm
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	100
Subcategory:	Automotive Connectors
Tradename:	DuraMate
Voltage Rating:	24 V
Width:	48.4 mm
Unit Weight:	123,145 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AHDP06-24-91S-BS2 Datasheet (PDF)

Models

3D CAD Model and Download

Product Catalogs

This functionality requires JavaScript to be enabled.

TARIC:: 8547200000
CNHTS:: 8536901100
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Isobus Implement Connectors

Amphenol-Tuchel Isobus Implement IBIC Connectors are compatible with ISO 11783-2 standards and include field-installable cable connectors and overmolded cable assemblies. Derived from the AHDP Duramate™ environmentally sealed connector series, the standard protocol establishes the electrical connection of implements to the tractor or other agriculture vehicles in order to transfer power, signals, and CAN-bus communication between the tractor and implement. The ergonomic plug-and-play design is easy to assemble with standard tools and provides a cost-effective quick-connect bayonet locking system manufactured to withstand harsh environments. Amphenol-Tuchel Isobus Implement IBIC Connectors offer IP67 / IP6K9K protection when mated.
