MHDAS2M060AE01

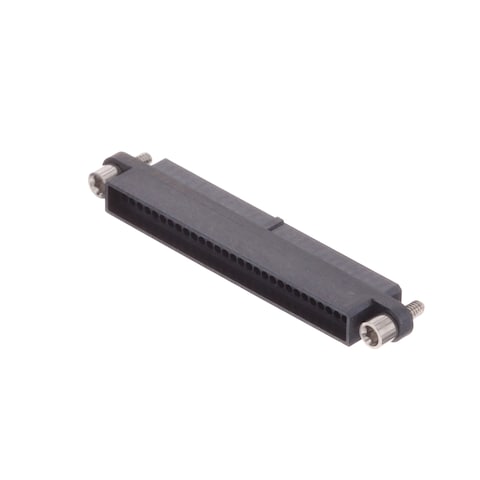

Name: Amphenol MHDAS2M060AE01
Brand: Amphenol Socapex
SKU: 523-MHDAS2M060AE01
Price: 248.14 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

523-MHDAS2M060AE01

Mfr. No:

MHDAS2M060AE01

Mfr.:

Amphenol Socapex

Description:

Rectangular Mil Spec Connectors Micro HDAS 60 male crimp contacts AWG 2460 position pin 1.27 mm 2 row straight

Datasheet:

MHDAS2M060AE01 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Socapex MHDAS2M060AE01

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: Request Delivery Quote

Enter Quantity:

Minimum: 5 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	248,14 €	1.240,70 €
	223,75 €	2.237,50 €
	212,65 €	5.316,25 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Rectangular Mil Spec Connectors
RoHS:
Product:	Connectors
Number of Positions:	60 Position
Number of Rows:	2 Row
Termination Style:	Crimp
Mounting Style:	Cable
Contact Gender:	Pin (Male)
Contact Plating:	Gold
MIL Type:	MIL-DTL-55302G
Series:	HDAS
Mounting Angle:	Straight
Brand:	Amphenol Socapex
Contact Material:	Copper Alloy
Current Rating:	3 A
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 150 C
Minimum Operating Temperature:	- 65 C
Pitch:	1.27 mm
Product Type:	Rectangular MIL Spec Connectors
Subcategory:	MIL-Spec / MIL-Type
Voltage Rating:	750 V
Wire Gauge - AWG:	24 AWG
