RTS6BS18N23SHEC03

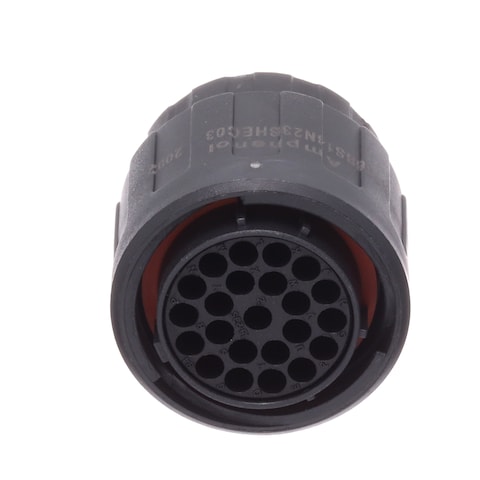

Name: Amphenol RTS6BS18N23SHEC03
Brand: Amphenol SINE Systems
SKU: 654-RTS6BS18N23SHC03
Price: 15.1 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTS6BS18N23SHC03

Mfr. No:

RTS6BS18N23SHEC03

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector Strt Plug w endcap 23 POS SZ 18 Socket

Datasheet:

RTS6BS18N23SHEC03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTS6BS18N23SHEC03

In Stock: 69

Stock:: 69 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	15,10 €	15,10 €
	13,09 €	130,90 €
	12,41 €	248,20 €
	12,23 €	611,50 €
	10,78 €	1.078,00 €
	10,17 €	2.034,00 €
	9,85 €	4.925,00 €
	9,35 €	9.350,00 €
2.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	23 Position
Contact Gender:	Socket (Female)
Shell Size:	18
Mounting Style:	Cable
Termination Style:	Crimp
Accessory Type:	Plug
Diameter:	35.3 mm
IP Rating:	IP67, IP69k
Series:	Aquarius
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Female
Housing Material:	Thermoplastic
Length:	35 mm
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Style:	Plug
Factory Pack Quantity:	100
Subcategory:	Circular Connectors
Tradename:	Ecomate
Voltage Rating:	500 V
Wire Gauge:	26 AWG to 14 AWG
Unit Weight:	35,443 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RTS6BS18N23SHEC03 Datasheet (PDF)

Models

3D Image

Product Catalogs

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

ecomate® Connectors

Amphenol ecomate^® Connectors offer an IP65 to IP69K rating range (in mated condition) for indoor and outdoor industrial applications. These circular, multiway connectors utilize durable plastic or metal construction with a circular bayonet, a quick-locking automatic, or a rapid coupling system option. The Amphenol ecomate family is robust and provides a maximum amperage/voltage range of 56A to 300A/600V to 900V, depending on the series. Suitable applications include factory automation, industrial, solar energy and power, heavy equipment, heavy duty, transportation, marine, entertainment/lighting, robotics, and more.

eco|mate® Aquarius Waterproof Connectors

Amphenol Sine Systems eco|mate® Aquarius Waterproof Connectors provide an IP68/69K waterproof rating when in a mated condition. Amphenol Sine Aquarius corrosion-resistant connectors feature a plastic shell and low-profile housing for indoor/outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes, along with 27 insert arrangements. Additional features include optional inline, jam-nut, square-flanged, PCB, and end-cap configurations.
