RTS018N103S03

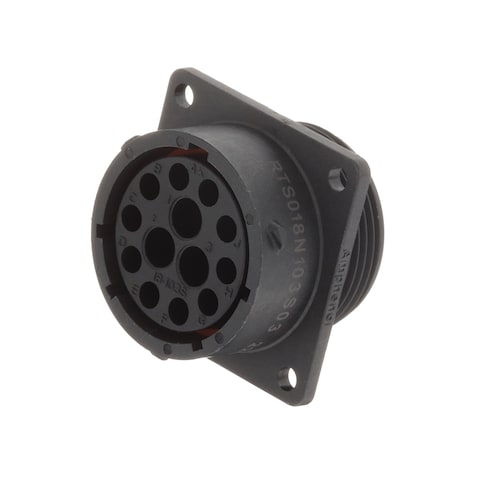

Name: Amphenol RTS018N103S03
Brand: Amphenol SINE Systems
SKU: 654-RTS018N103S03
Price: 7.74 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTS018N103S03

Mfr. No:

RTS018N103S03

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector Receptacle, Square Flange, 13 (10+3 COAX) Position, Female, Shell Size 18, with Silicone Seal

Datasheet:

RTS018N103S03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTS018N103S03

In Stock: 49

Stock:: 49 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 49 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,74 €	7,74 €
	6,97 €	69,70 €
	6,57 €	131,40 €
	6,40 €	320,00 €
	6,23 €	623,00 €
	5,56 €	1.112,00 €
	5,22 €	2.610,00 €
	4,77 €	4.770,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	13 Position
Contact Gender:	Socket (Female)
Shell Size:	18
Mounting Style:	Panel
Termination Style:	Crimp
Shell Material:	Thermoplastic (TP)
Accessory Type:	Square Flange Receptacle
Diameter:	28.6 mm
IP Rating:	IP67, IP69k
Series:	Aquarius
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	1 A, 13 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Female
Housing Material:	Thermoplastic
Insert Arrangement:	18-13
Length:	32.3 mm
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Style:	Square Flange
Factory Pack Quantity:	100
Subcategory:	Circular Connectors
Voltage Rating:	500 V
Wire Gauge:	26 AWG to 14 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536699099
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Mexico
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

ecomate® Connectors

Amphenol ecomate^® Connectors offer an IP65 to IP69K rating range (in mated condition) for indoor and outdoor industrial applications. These circular, multiway connectors utilize durable plastic or metal construction with a circular bayonet, a quick-locking automatic, or a rapid coupling system option. The Amphenol ecomate family is robust and provides a maximum amperage/voltage range of 56A to 300A/600V to 900V, depending on the series. Suitable applications include factory automation, industrial, solar energy and power, heavy equipment, heavy duty, transportation, marine, entertainment/lighting, robotics, and more.

eco|mate® Aquarius Waterproof Connectors

Amphenol Sine Systems eco|mate® Aquarius Waterproof Connectors provide an IP68/69K waterproof rating when in a mated condition. Amphenol Sine Aquarius corrosion-resistant connectors feature a plastic shell and low-profile housing for indoor/outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes, along with 27 insert arrangements. Additional features include optional inline, jam-nut, square-flanged, PCB, and end-cap configurations.
