RTHP0203SNH

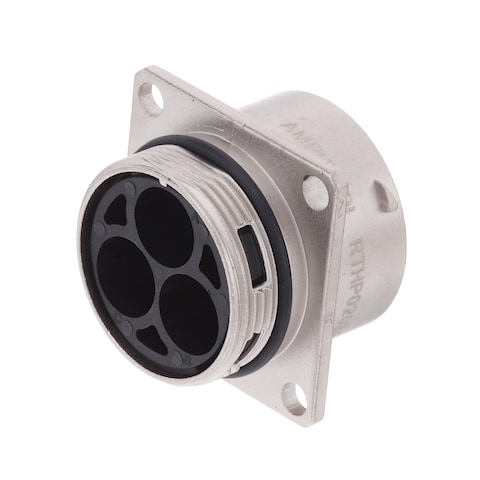

Name: Amphenol RTHP0203SNH
Brand: Amphenol SINE Systems
SKU: 654-RTHP0203SNH
Price: 16.99 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTHP0203SNH

Mfr. No:

RTHP0203SNH

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector Receptacle, Square Flange, 3 Position, Female, RADSOK Technology, High Amperage, Shell Size 20, Crimp Termination

Datasheet:

RTHP0203SNH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTHP0203SNH

In Stock: 56

Stock:: 56 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	16,99 €	16,99 €
	15,28 €	152,80 €
	14,47 €	361,75 €
	14,27 €	713,50 €
	12,27 €	1.227,00 €
	11,51 €	2.877,50 €
	10,96 €	5.480,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	3 Position
Contact Gender:	Socket (Female)
Shell Size:	20
Mounting Style:	Panel
Termination Style:	Crimp
Shell Material:	Zinc
Accessory Type:	Square Flange Receptacle
IP Rating:	IP67
Series:	RM
Brand:	Amphenol SINE Systems
Contact Material:	Copper Alloy
Current Rating:	86 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Female
Housing Material:	Zinc Alloy
Insert Arrangement:	20-03
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Plating:	Nickel
Shell Style:	Square Flange
Factory Pack Quantity:	25
Subcategory:	Circular Connectors
Tradename:	Ecomate
Voltage Rating:	630 V
Wire Gauge:	8 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536699099
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Mexico
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

ecomate® Connectors

Amphenol ecomate^® Connectors offer an IP65 to IP69K rating range (in mated condition) for indoor and outdoor industrial applications. These circular, multiway connectors utilize durable plastic or metal construction with a circular bayonet, a quick-locking automatic, or a rapid coupling system option. The Amphenol ecomate family is robust and provides a maximum amperage/voltage range of 56A to 300A/600V to 900V, depending on the series. Suitable applications include factory automation, industrial, solar energy and power, heavy equipment, heavy duty, transportation, marine, entertainment/lighting, robotics, and more.

ecomate® Rugged Metal (RM) Shielded Connectors

Amphenol Sine Systems ecomate^® Rugged Metal (RM) Series Shielded Connectors of circular metal connectors provide an IP67 rating (in mated condition) for industrial applications, all in a sealed connector system. With a circular bayonet coupling system and a maximum current rating of 45A/600V, the ecomate RM series is perfect for indoor/outdoor applications in factory automation, industrial, heavy equipment, heavy-duty, transportation, and entertainment/lighting markets. The design is based on MILDTL-26482 specifications. All ecomate RM products are compatible with other industry-standard mating connectors.
