AT04-6P-WHT

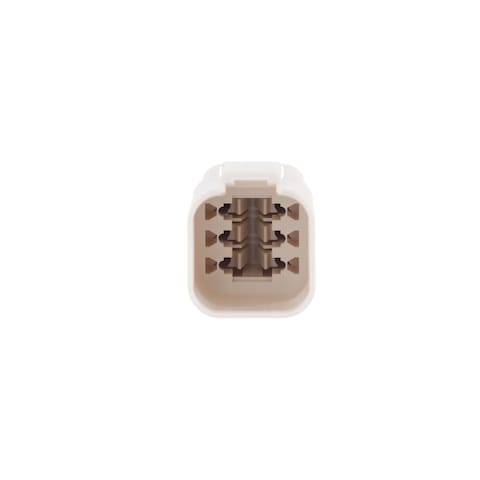

Name: Amphenol AT04-6P-WHT
Brand: Amphenol SINE Systems
SKU: 654-AT04-6P-WHT
Price: 2.1 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT04-6P-WHT

Mfr. No:

AT04-6P-WHT

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 6-WAY RECEPTACLE, MALE

Datasheet:

AT04-6P-WHT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT04-6P-WHT

In Stock: 249

Stock:: 249 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 249 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,10 €	2,10 €
	1,83 €	18,30 €
	1,75 €	43,75 €
	1,63 €	163,00 €
	1,48 €	370,00 €
	1,37 €	657,60 €
	1,17 €	1.123,20 €
	1,09 €	3.139,20 €
	1,03 €	5.438,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	6 Position
Gender:	Receptacle (RP - Male)
Mounting Style:	Cable Mount / Free Hanging
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	White
Series:	AT
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Contact Gender:	Without Pin Contacts
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Dimensions:	46.2 mm x 21.1 mm x 24.3 mm
Height:	24.3 mm
Housing Material:	Thermoplastic (TP)
Insulation:	Insulated
Insulation Resistance:	1 GOhms
Length:	46.2 mm
Mating Gender:	Plug
Mating Part Number:	AT04-6S
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	3 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	480
Subcategory:	Automotive Connectors
Width:	21.1 mm
Wire Gauge Range:	14 AWG to 20 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Product Catalogs

This functionality requires JavaScript to be enabled.

USHTS:: 8538906000
ECCN:: EAR99

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.

AT Series™ Connectors

Amphenol Sine Systems AT Series™ connectors are a high-performance, thermoplastic, cost-effective solution with superior environmental seals and seal retention capabilities with IP68 and IP69K ratings (in mated condition). The connector design incorporates an integrated latching system with over-sized detents that ensure a definitive electrical and mechanical connection. All AT Series connectors offer a wide range of end caps and strain relief options and have been developed to be comparable with all other existing standard products industry-wide. The connectors are available in BoardLock™, HYPERBUSS™, LED, PanelMate™, and StructurePlus™ options.
