AT04-6P-SR02BLK

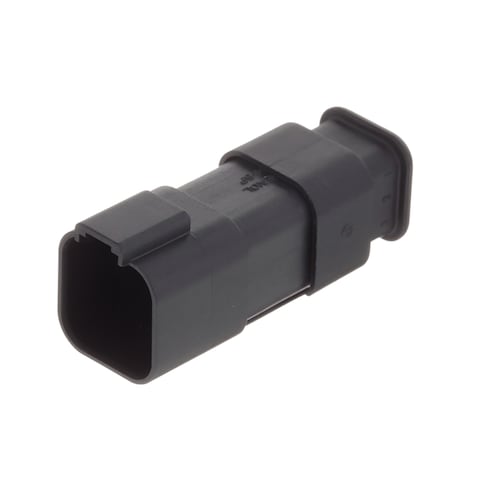

Name: Amphenol AT04-6P-SR02BLK
Brand: Amphenol SINE Systems
SKU: 654-AT04-6P-SR02BLK
Price: 1.63 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT04-6P-SR02BLK

Mfr. No:

AT04-6P-SR02BLK

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors Recpt 6-Way RD Seal Strain Relief Black

Datasheet:

AT04-6P-SR02BLK Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT04-6P-SR02BLK

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 1.780

Expected 3/6/2026

900

Expected 4/17/2026
Factory Lead Time:: 8

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,63 €	1,63 €
	1,49 €	14,90 €
	1,40 €	35,00 €
	1,33 €	133,00 €
	1,24 €	372,00 €
	1,17 €	702,00 €
	1,11 €	1.332,00 €
	1,05 €	2.835,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	6 Position
Gender:	Receptacle (RP - Male)
Mounting Style:	Cable Mount / Free Hanging
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	AT
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Housing Material:	Thermoplastic (TP)
Insulation:	Insulated
Insulation Resistance:	1 GOhms
Mating Gender:	Plug
Mating Part Number:	AT06-6Sx
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	3 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	300
Subcategory:	Automotive Connectors
Type:	6-Way
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	16,280 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8547200090
CNHTS:: 8547200000
CAHTS:: 8536690090
USHTS:: 8538908180
JPHTS:: 853890000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.

AT Series™ SR01 & SR02 Connectors

Amphenol Sine Systems AT Series™ SR01 and SR02 Connectors deliver a high-performance, thermoplastic, cost-effective solution. These connectors feature specifically designed wire cavities that protect each individual wire seal. This design feature eliminates stress on the rear seal while maintaining an IP68 / IP69K rated (mated) performance regardless of wire bundle direction or improper installation. Amphenol Sine Systems AT Series SR01 and SR02 Connectors meet all of the performance criteria and specifications of the AT Series. These connectors are available in a variety of colors and accept all A Series™ Size 16 contacts. A required wedgelock is sold separately.

Automotive Connectors

Amphenol Sine Systems is a leading supplier of advanced interconnect systems for automotive safety devices and onboard electronics in automobiles. Typical applications include entertainment, communication, navigation, and telematics modules, as well as engine control, sensors, actuators, and auxiliary motors. In addition, Amphenol has developed solutions for hybrid electric vehicles (HEVs) and drive systems and is working with leading global customers to proliferate these advanced interconnect products into next-generation automobiles.

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.
