AT04-2P-PM13

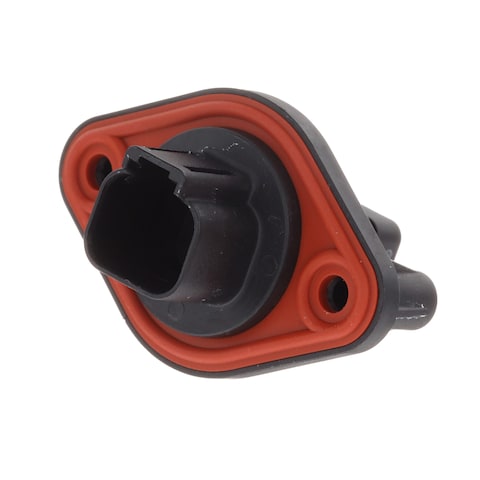

Name: Amphenol AT04-2P-PM13
Brand: Amphenol SINE Systems
SKU: 654-AT04-2P-PM13
Price: 3.43 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT04-2P-PM13

Mfr. No:

AT04-2P-PM13

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 2 Pin Rcpt Panel Mnt Self-Thread Blk Cap

Datasheet:

AT04-2P-PM13 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT04-2P-PM13

In Stock: 403

Stock:: 403

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 400

Expected 6/9/2026
Factory Lead Time:: 16

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,43 €	3,43 €
	2,97 €	29,70 €
	2,65 €	66,25 €
	2,41 €	241,00 €
	2,28 €	456,00 €
	2,22 €	1.332,00 €
	2,14 €	2.140,00 €
	2,00 €	5.200,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	2 Position
Gender:	Receptacle (RP - Male)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	AT
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	13 A
Description/Function:	Flange mount, Gasket, End Cap
Dimensions:	55.5 mm x 37 mm
Housing Material:	Thermoplastic (TP)
Insulation:	Insulated
Insulation Resistance:	1 GOhms
Length:	55.5 mm
Mating Gender:	Plug
Mating Part Number:	AT06-2Sx
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	200
Subcategory:	Automotive Connectors
Tradename:	PanelMate
Width:	37 mm
Wire Gauge Range:	14 AWG to 20 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Product Catalogs

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

PanelMate™ AT/ATP Connectors

Amphenol Sine Systems AT/ATP PanelMate™ Receptacles combine flange mounting options with the proven reliability of the AT Series™ and the ATP Series™ IP68/69K rated (mated), environmentally sealed, thermoplastic connection systems. Engineered with a one-piece sealed flange design for rapid and secure mounting, the receptacles utilize a durable high-temperature silicone facial seal to provide a barrier of protection from lubricating oils, hydraulic fluids, and fossil fuels. These features allow the PanelMate™ Receptacles to withstand harsh environment applications.

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.
