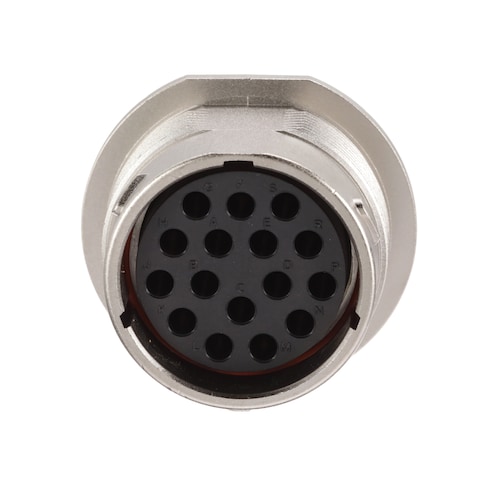

AHDM04-24-16SR

Name: Amphenol AHDM04-24-16SR
Brand: Amphenol SINE Systems
SKU: 654-AHDM042416SR
Price: 21.41 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AHDM042416SR

Mfr. No:

AHDM04-24-16SR

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector 16 Position Receptacle Kit, Shell Size 24, Socket, Reduced Diameter Seal, Wide Thread

Datasheet:

AHDM04-24-16SR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AHDM04-24-16SR

In Stock: 21

Stock:: 21 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 21 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	21,41 €	21,41 €
	18,20 €	182,00 €
	17,06 €	426,50 €
	16,25 €	812,50 €
	15,70 €	1.570,00 €
	15,33 €	3.832,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	16 Position
Contact Gender:	Socket (Female)
Shell Size:	24
Mounting Style:	Cable
Termination Style:	Crimp
Shell Material:	Zinc Alloy
IP Rating:	IP67, IP69K
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	25 A
Housing Gender:	Female
Housing Material:	Zinc
Mating Cycles:	100 Cycle
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Plating:	Nickel
Shell Style:	Receptacle
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Wire Gauge:	14 AWG to 10 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536699099
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Mexico
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

DuraMate™ AHDM Circular Metal Connectors

Amphenol Sine Systems DuraMate™ AHDM Circular Metal Connectors are IP68 / 69K (mated), environmentally sealed, multi-pin, heavy-duty, metal (AHDM), circular connectors. These connectors can withstand the challenges and complexities of harsh environmental off-road applications. The AHDM connectors are designed with a three key-way quick-connect bayonet locking system to ensure proper mating of the connectors. The series is available in size 24 with 13 insert arrangements and in size 18 with 6 insert arrangements. These Connectors feature high-current configurations incorporating RADSOK^® contacts, high-density signal, and mixed power insert configurations. The vibration-resistant connectors operate from -55°C to 125°C temperature range.
