SMP-MSLD-PCE-3

Name: Amphenol SMP-MSLD-PCE-3
Brand: Amphenol RF
SKU: 523-SMP-MSLD-PCE-3
Price: 5.13 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-SMP-MSLD-PCE-3

Mfr. No:

SMP-MSLD-PCE-3

Mfr.:

Amphenol RF

Description:

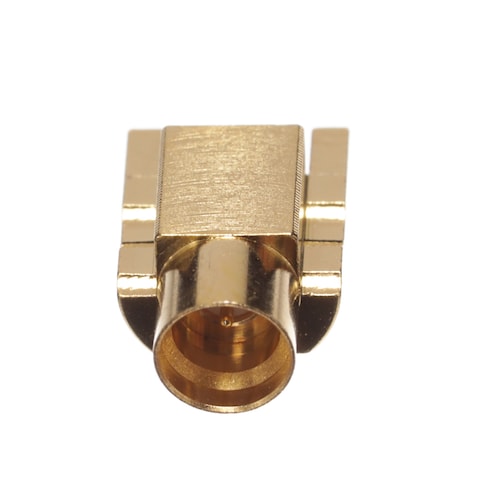

RF Connectors / Coaxial Connectors Edge Mount PCB Jack, Srf Mnt, 50 Ohm

Datasheet:

SMP-MSLD-PCE-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol RF SMP-MSLD-PCE-3

In Stock: 493

Stock:: 493 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,13 €	5,13 €
	4,37 €	43,70 €
	4,09 €	102,25 €
	3,90 €	195,00 €
	3,72 €	372,00 €
	3,48 €	870,00 €
	3,46 €	1.730,00 €
Full Reel (Order in multiples of 1000)
	3,46 €	3.460,00 €
	3,26 €	6.520,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	SMP
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	18 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Edge Mount
Packaging:	Reel
Packaging:	Cut Tape
Body Finish:	Gold
Body Material:	Beryllium Copper
Body Style:	Edge Mount
Brand:	Amphenol RF
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mating Cycles:	500 Cycle
Maximum Operating Temperature:	+ 165 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMP
Factory Pack Quantity:	1000
Subcategory:	RF Interconnects
Unit Weight:	1,413 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
