SMP-FS-FDPCT

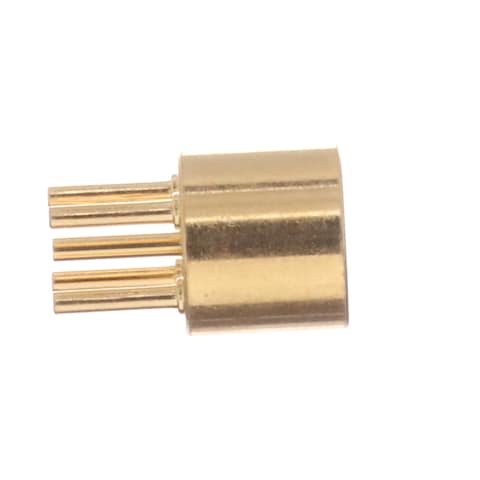

Name: Amphenol SMP-FS-FDPCT
Brand: Amphenol RF
SKU: 523-SMP-FS-FDPCT
Price: 8.65 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-SMP-FS-FDPCT

Mfr. No:

SMP-FS-FDPCT

Mfr.:

Amphenol RF

Description:

RF Connectors / Coaxial Connectors RF Connector SMP Str Through Hole 50 Ohm

Datasheet:

SMP-FS-FDPCT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol RF SMP-FS-FDPCT

In Stock: 117

Stock:: 117 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,65 €	8,65 €
	7,34 €	73,40 €
	6,88 €	172,00 €
	6,55 €	327,50 €
	5,44 €	1.360,00 €
	5,28 €	2.640,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	SMP
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	12 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Through Hole
Packaging:	Bulk
Body Finish:	Gold
Body Material:	Brass
Brand:	Amphenol RF
Contact Material:	Brass
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Frequency:	0 Hz to 12 GHz
Mating Cycles:	500 Cycle
Maximum Operating Temperature:	+ 165 C
Minimum Frequency:	0 Hz
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Factory Pack Quantity:	1
Subcategory:	RF Interconnects

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SMP Connectors

Amphenol RF SMP Connectors feature a subminiature interface in the same scale as MMCX connectors while offering a frequency range of DC to 40GHz. These SMP connectors are commonly used in miniaturized high-frequency coaxial modules and are offered in both push-on and snap-on mating styles. The interface is ideal for PC board-to-board interconnect and utilizes a male connector on each of the PC boards and a female-to-female adapter mounted in between to complete the connection. The female adapter is often called a bullet and is necessary to provide a flexible link between the male connectors. This flexible link allows 0.020" of radial float and 0.010" of the axial float. One male connector is typically specified as a snap-on interface and the other as a push-on. This ensures the bullet adapter remains fixed in the same male connector if the PC boards are separated. Amphenol RF SMP connectors feature bullets in multiple lengths for different board spacing.
