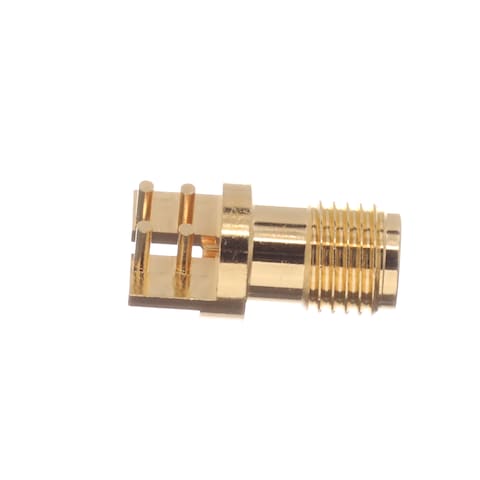

901-10512-4

Amphenol RF
523-901-10512-4
901-10512-4

Mfr.:

Description:
RF Connectors / Coaxial Connectors HF SMA(F) PCM 15 MIL PIN

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about Amphenol RF 901-10512-4

Availability

Stock:
Non-Stocked
Factory Lead Time:
Minimum: 100   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:
This Product Ships FREE

Pricing (EUR)

Qty. Unit Price
Ext. Price
7,45 € 745,00 €
6,79 € 1.697,50 €
6,36 € 3.180,00 €
5,83 € 5.830,00 €

Product Attribute Attribute Value Select Attribute
Amphenol
Product Category: RF Connectors / Coaxial Connectors
RoHS:
PCB Connectors
SMA
Jack (Socket)
50 Ohms
26.5 GHz
Solder
Right Angle
Standard
Edge Launch
Body Finish: Gold
Body Material: Brass
Brand: Amphenol RF
Contact Material: Beryllium Copper
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Insulation Resistance: 1 GOhms
Mating Cycles: 500 Cycle
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
Product Type: RF Connectors / Coaxial Connectors
Subcategory: RF Interconnects
Unit Weight: 4 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

TARIC:
8536693000
CNHTS:
8536901100
CAHTS:
8536690020
USHTS:
8536694040
JPHTS:
853669000
KRHTS:
8536691000
MXHTS:
8536699999
BRHTS:
85366990
ECCN:
EAR99

High Frequency SMA End Launch Connectors

Amphenol RF High-Frequency SMA End Launch Connectors feature an optimized end launch design with through-hole legs or traditional slide-on mounting legs, making them an ideal PCB connector solution for high-frequency applications. These connectors offer excellent voltage standing wave ratio (VSWR) performance up to 26.5GHz and are available for multiple different PCB thicknesses. Other features include 50Ω impedance, 170VRMS voltage rating, 1000MΩ insulation resistance, and -65°C to +165°C temperature range. Amphenol RF High-Frequency SMA End Launch Connectors are ideal for use in amplifiers, wireless infrastructures, remote sensing and metering, GPS antennas, radar systems, high-speed routers and switches, automated test equipment, and much more.
