2FA1-WZSP-PCBA3

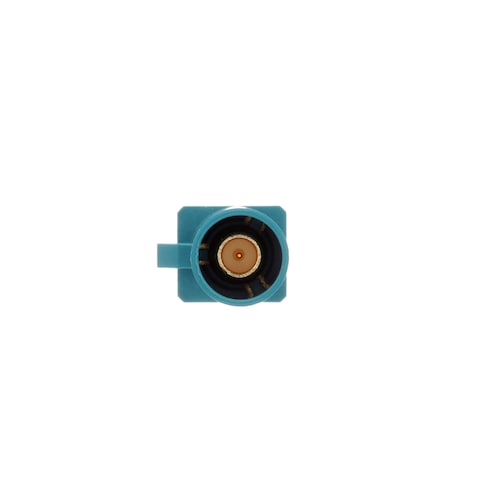

Name: Amphenol 2FA1-WZSP-PCBA3
Brand: Amphenol RF
SKU: 523-2FA1-WZSP-PCBA3
Price: 3.74 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-2FA1-WZSP-PCBA3

Mfr. No:

2FA1-WZSP-PCBA3

Mfr.:

Amphenol RF

Description:

RF Connectors / Coaxial Connectors Edgemount PCB PLUG

Datasheet:

2FA1-WZSP-PCBA3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol RF 2FA1-WZSP-PCBA3

In Stock: 267

Stock:: 267 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,74 €	3,74 €
	3,37 €	33,70 €
	3,21 €	80,25 €
	3,12 €	156,00 €
	2,98 €	298,00 €
	2,81 €	702,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	FAKRA
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	6 GHz
Termination Style:	Solder
Orientation:	Right Angle
Polarity:	Standard
Mounting Style:	Through Hole
Packaging:	Tray
Body Finish:	Nickel
Body Material:	Zinc DieCast
Body Style:	Right Angle
Brand:	Amphenol RF
Contact Material:	Brass
Contact Plating:	Gold
Contact Termination:	Solder
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Coupling Mechanism:	Push On
Isolation:	Isolated
Mating Cycles:	100 Cycles
Maximum Operating Temperature:	+ 100 C
Minimum Operating Temperature:	- 40 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	FAKRA
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Tradename:	AUTOMATE
Unit Weight:	4,550 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2FA1-WZSP-PCBA3 Datasheet (PDF)

Models

2FA1-WZSP-PCBA3 (CAD)

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

FAKRA Automotive Connectors

Amphenol RF FAKRA Automotive Connectors are designed to perform up to 6GHz and meet the particular mechanical and environmental requirements of the automotive industry to ensure reliable communication inside, to, and from vehicles. Amphenol RF also offers a variety of FAKRA connectors for PCB and antenna interfaces, as well as mixed dual coax/power FAKRA connectors. Amphenol RF FAKRA connectors comply with USCAR 17 and 18. Utilizing a modified metal SMB coaxial connector, the (female) jack features a closed-entry interface with a protected outer contact, making the connector more robust than traditional SMBs. These FAKRA connectors are embedded within a plastic housing that features multiple color codes for easy identification and unique keying to prevent mismating.
