242215

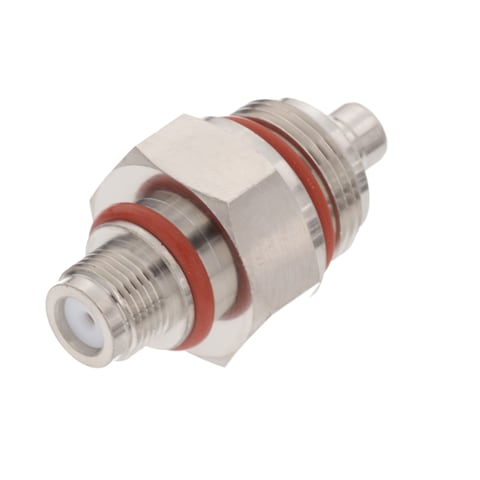

Name: Amphenol 242215
Brand: Amphenol RF
SKU: 523-242215
Price: 29.1 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

523-242215

Mfr. No:

242215

Mfr.:

Amphenol RF

Description:

RF Adapters - Between Series F BULKHEAD JACK TO SMB JACK ADPTR

Datasheet:

242215 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol RF 242215

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	29,10 €	29,10 €
	24,74 €	247,40 €
	23,62 €	590,50 €
	22,86 €	1.143,00 €
	22,09 €	2.209,00 €
	21,57 €	5.392,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Adapters - Between Series
RoHS:
REACH - SVHC:
Side 1 RF Series:	F
Side 1 Gender:	Jack (Female)
Side 1 Polarity:	Normal
Side 2 RF Series:	SMB
Side 2 Gender:	Jack (Female)
Side 2 Polarity:	Normal
Maximum Frequency:	2 GHz
Impedance:	75 Ohms
Side 1 Body Style:	Bulkhead
Side 2 Body Style:	Bulkhead
Adapter Style:	Straight
Shell Plating:	Gold
Body Material:	Brass
Contact Plating:	Gold
Brand:	Amphenol RF
Connector Type:	F SMB
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	RF Adapters - Between Series
Factory Pack Quantity:	1
Subcategory:	RF Adapters
Part # Aliases:	FF-SMZM1-NT30G-75
Unit Weight:	44,072 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

242215 Datasheet (PDF)

Technical Resources

Customer Drawing (PDF)

EU Declaration of Conformity

TARIC:: 8536691000
CNHTS:: 8536901100
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Coaxial Adapters

Amphenol RF In-Series and Between-Series Coaxial Adapters are designed to meet the requirements of RF applications. These adapters provide consistent electrical performance and optimized mechanical reliability, as they allow transitions between popular coaxial connector interfaces such as BNC, SMA, N-Type, and TNC. Amphenol RF Coaxial Adapters feature multiple adapter configurations and are available in a variety of body materials, including brass, beryllium copper, and stainless steel.

SMB Connectors & Adapters

Amphenol RF SMB Connectors and Adapters offer broadband capability through 4GHz with a snap-on connector design. The SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force. The quick connect/disconnect snap-on mating reduces installation time. The connectors are MIL-C-39012 compliant, while the interface is MIL-STD-348 compliant. Amphenol RF SMB Connectors and Adapters are available in 50Ω and 75Ω impedances. Typical applications include base stations, antennas, radio boards, instrumentation, telecom, and more.

5G Wireless Connectors

Amphenol RF 5G Wireless Connectors, adapters, and cable assemblies include innovative new product lines and industry-standard products that equip designs for the 5G next-generation mobile network standards. These Amphenol RF 5G devices ensure high data rates for low-latency applications. These connectors, adapters, and cable assemblies include high-density, cost-effective, and robust products to enable the wireless infrastructure evolution. Amphenol RF offers low PIM products, including HD-EFI, N-Type, PSMP, SMP, SMPM, 2.2/5, 4.3/10, and 7/16 connector series, as well as cable assemblies and adapters.
